Pcb Smd 5-Axis Desktop Robotic Soldering Robot Machine

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5-axis desktop soldering robot, PCB SMD robotic soldering machine, desktop PCB depaneling machine


Berat:	90kg	Berat mesin:	110kg
Catu daya:	AC220V + 10% 50HZ	Konsumsi Daya:	2000W
Sistem kendali:	Kartu kendali gerak 5 sumbu	Tipe Motor:	Motor langkah
Sistem pemanas:	Induksi frekuensi tinggi	elemen pemanas:	Kumparan perak
Akurasi kawat solder:	0,1 mm	Sistem Operasi:	Windows 7
Antarmuka:	Layar sentuh	Metode Pemrograman:	Ajarkan pemrograman
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor	metode pengelasan:	Arus eddy suhu tinggi
Sumbu gerak:	X, Y, Z, R, umpan kawat solder

Berat:	90kg
Berat mesin:	110kg
Catu daya:	AC220V + 10% 50HZ
Konsumsi Daya:	2000W
Sistem kendali:	Kartu kendali gerak 5 sumbu
Tipe Motor:	Motor langkah
Sistem pemanas:	Induksi frekuensi tinggi
elemen pemanas:	Kumparan perak
Akurasi kawat solder:	0,1 mm
Sistem Operasi:	Windows 7
Antarmuka:	Layar sentuh
Metode Pemrograman:	Ajarkan pemrograman
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
metode pengelasan:	Arus eddy suhu tinggi
Sumbu gerak:	X, Y, Z, R, umpan kawat solder

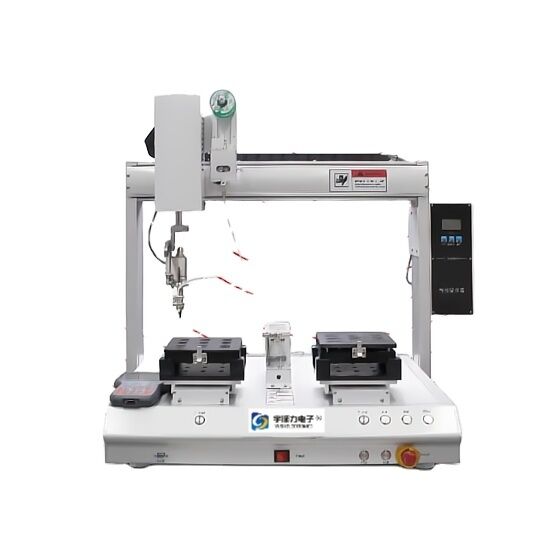

Pcb Smd 5-Axis Desktop Robotic Soldering Robot Machine

PCB SMD 5-Axis Desktop Robotic Soldering Machine

Soldering Principle

This advanced robotic soldering system utilizes multi-axis drive manipulator technology with sophisticated software control to achieve precise positioning of the welding head. The welding method employs high-temperature eddy current heating through a specialized soldering iron.

The working principle involves fixing the soldering iron on the robot arm, which moves to specified welding coordinates and automatically feeds solder wire at the tip. The soldering iron then engages with the target at high temperature for precise soldering operations.

Product Introduction

The YS soldering robot features an integrated solder wire feeding motion system with high-frequency heating technology that provides rapid heat recovery. The system utilizes easily exchangeable soldering tips with low replacement costs. The break-tin automatic solder wire feeder significantly reduces flux residue problems after soldering.

Key Features

Cost Efficiency: High-efficiency operation requiring only one operator, delivering productivity equivalent to 3-5 manual workers
Integrated Control System: X, Y, Z, R, and solder wire feeding motions controlled by a combined 5-axis motion control card with PC integration for stable operation and ease of use
Precision Engineering: Quality stepper motors with advanced control systems ensure smooth and precise machine movement
Automatic Tip Maintenance: Built-in soldering tip cleaning device improves soldering quality and extends tip lifespan
User-Friendly Interface: Windows 7 English operating system with touchscreen, wireless controller, and teach programming method
Advanced Solder Feeding: Break-tin solder wire feeding system pierces holes during feeding, reducing burst tin and flux residue on PCBs with 0.1mm feeding accuracy
High-Frequency Heating: Rapid temperature recovery with silver coil heating elements for long lifespan and easily replaceable low-cost tips
Intuitive Software: Self-developed advanced software with game-style wireless controller programming for easy parameter setting
Clean Work Environment: Optional smoke cover and extractor available for maintaining clean working conditions
Customizable Solutions: Various soldering tips available with custom options to meet specific process requirements
Multi-Robot Operation: Single operator can manage 2-3 robots simultaneously with simple pick-and-place fixture handling
Custom Configuration: Robots strictly customized based on specific product and soldering requirements for production line integration

Operational Advantages

Multiple soldering techniques: spot soldering, drag soldering, automatic cleaning, and multi-angle soldering
Advanced programming features: position calibration, soldering dot array, parameter copy, automatic location, and skip functions
Teaching programming capability enables implementation of all hand soldering types according to specific requirements
Program calibration for workpiece integral coordinate position compensation
Easy program revision with insertion and deletion functions
Intelligent control system for precise delivery of solder with adjustable speed, time, temperature, and quantity parameters
