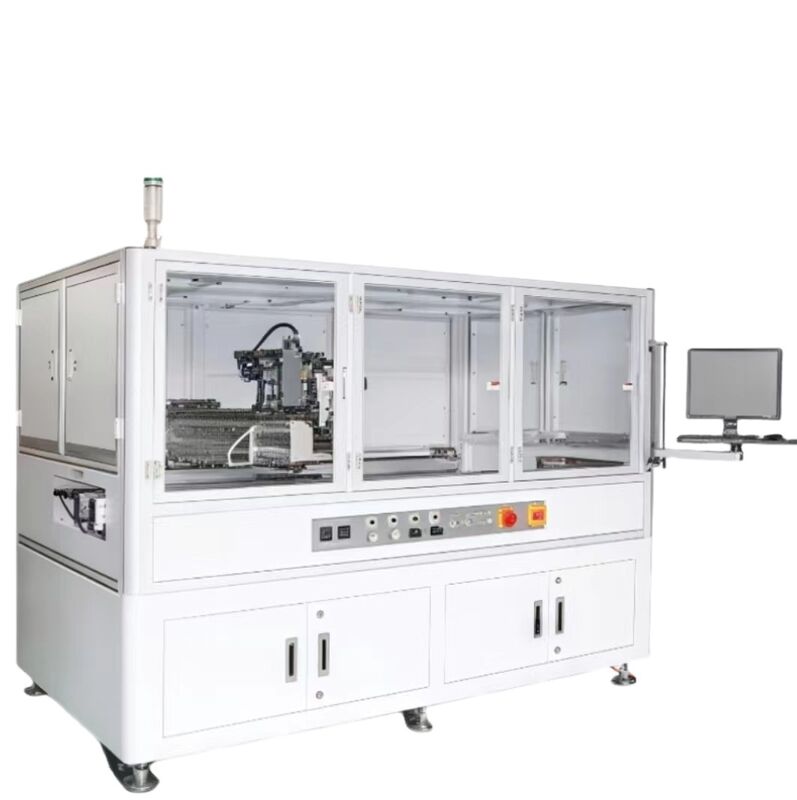

YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine

Name: YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-D400
Price: 9.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YS-D400

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $8,800-10,800 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high precision LED lens dispensing machine, automatic PCB depaneling machine, stable YS-D400 dispensing machine


Berat:	650kg	Jangkauan pengeluaran:	X400Y400Z60mm
Metodologi Visi:	CCD	Sistem pembersih:	Otomatis
Kecepatan Katup Injeksi:	200 poin/detik	Catu daya:	1 PH AC 220V 50/60Hz (Opsinya:110V sampai 230V)
Dimensi:	P770L1200T1500mm	Komponen inti:	Motor, Pompa
Bahan platform:	Marmer	Sistem Dispensing:	Jarum/Katup Semprot
Standar kalibrasi:	Skala Elektronik 0,1mg	Model:	YS-D400
Rentang Pengeluaran Maks:	X1200Y400Z60mm	Berat Maks:	1150 kg
Dimensi Maks:	P1690L1200T1500mm

Berat:	650kg
Jangkauan pengeluaran:	X400Y400Z60mm
Metodologi Visi:	CCD
Sistem pembersih:	Otomatis
Kecepatan Katup Injeksi:	200 poin/detik
Catu daya:	1 PH AC 220V 50/60Hz (Opsinya:110V sampai 230V)
Dimensi:	P770L1200T1500mm
Komponen inti:	Motor, Pompa
Bahan platform:	Marmer
Sistem Dispensing:	Jarum/Katup Semprot
Standar kalibrasi:	Skala Elektronik 0,1mg
Model:	YS-D400
Rentang Pengeluaran Maks:	X1200Y400Z60mm
Berat Maks:	1150 kg
Dimensi Maks:	P1690L1200T1500mm

YS-D400 High Accuracy Stable High Precision Automatic LED LENS Dispensing Machine

Platform System

Integral frame with marble platform supporting moving parts. Moving parts utilize imported accessories to ensure high accuracy and stability of equipment operation.

Dispensing System

Needle dispensing and spray valve dispensing options available
Spray valve dispensing can be fixed or rotary
Optional CCD camera, laser altimeter, and glue sensor

Calibration System

0.1mg Electronic Scale
Scale and Ceramic Plate
Mechanical Height Detection
Vacuum Cleaning System
Gluing Cup

Technical Specifications

Model	YS-D400	YS-D600 (LENS)	YS-D1200 (LENS)
Dispensing Range	X400Y400Z60mm	X600Y600Z60mm	X1200Y400Z60mm
Vision Methodology	CCD
Cleaning System	Automatic
Injection Valve Speed	200 points/second
Power Supply	1 PH AC 220V 50/60Hz (Option: 110V to 230V)
Weight	650 kg	850 kg	1150 kg
Dimension	L770W1200H1500mm	L1065W1505H1500mm	L1690W1200H1500mm

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery. With advanced production and processing equipment, YUSH maintains an experienced development and manufacturing team where half of the personnel have over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. YUSH prioritizes product quality, safety, and innovation, producing high-quality, stable performance, and cost-effective products that improve production yields and enhance customer competitiveness. The company offers various PCB separating solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. With good quality and reasonable pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
