Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 axis glue dispenser machine, automatic PCB glue dispenser, PCB depaneling glue applicator


Berat:	70kg	Kekuatan:	5 kW
Voltase:	220v, 110v	Kecepatan Maks:	400mm/detik
Jangkauan Kerja:	100 mm hingga 500 mm	Wilayah kerja:	300300100mm
Kecepatan gerak X/Y:	500 mm/detik	Kecepatan bergerak Z:	400mm/detik
Ukuran mesin:	537560820mm	Komponen inti:	PLC, Gearbox, Motor, Pompa
Bahan:	Profil aluminium die-cast	Tipe Motor:	Motor pijakan Xinrong Jepang
Panduan Linier:	Panduan linier perak Taiwan	Sabuk Sinkron:	Impor Italia
Jenis Kabel:	Kabel terlindung anti lipat yang diimpor

Berat:	70kg
Kekuatan:	5 kW
Voltase:	220v, 110v
Kecepatan Maks:	400mm/detik
Jangkauan Kerja:	100 mm hingga 500 mm
Wilayah kerja:	300300100mm
Kecepatan gerak X/Y:	500 mm/detik
Kecepatan bergerak Z:	400mm/detik
Ukuran mesin:	537560820mm
Komponen inti:	PLC, Gearbox, Motor, Pompa
Bahan:	Profil aluminium die-cast
Tipe Motor:	Motor pijakan Xinrong Jepang
Panduan Linier:	Panduan linier perak Taiwan
Sabuk Sinkron:	Impor Italia
Jenis Kabel:	Kabel terlindung anti lipat yang diimpor

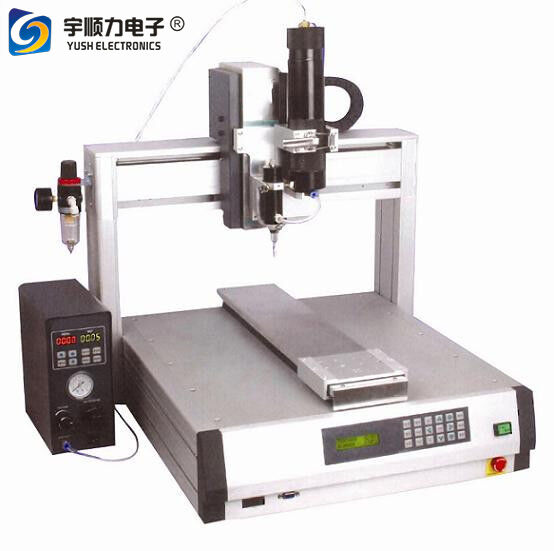

Automatic 3 Axis Glue Dispenser

Product Overview

Compact desktop three-axis dispensing machine designed for efficient batch assembly and distribution operations.

Key Features

Space-saving desktop design ideal for batch assembly operations
High-speed performance at 400 mm/s with exceptional durability
Unique driving circuit eliminates dispensing offset for precision application
Manufacturer's technical expertise ensures application accuracy
Excellent straightness and high-definition tracking capabilities
Clean corner R-shape application without liquid residue or skew
Adjustable working range from 100 mm to 500 mm to suit various workspace requirements
USB connectivity for easy program file upload/download and data management
User-friendly operation interface with intuitive learning curve
CNC-processed machine tool ensures XYZ verticality and enhanced processing accuracy

Hot Melt Adhesive Machine Advantages

Die-cast aluminum profile structure for aesthetic appearance and structural consistency
CNC-machined components ensuring part accuracy and uniformity
Standardized assembly process with 100% strict calibration standards
Premium core components: Japanese Xinrong stepper motor, Italian imported synchronous belt, Taiwan silver linear guide
Smooth, quiet operation during high-speed glue dispensing
Special assembly process for synchronous pulley and motor with Japanese technology belts
Modular assembly design allowing quick replacement of individual components
Import brand fold-proof shielded cables for reliable operation and safety
