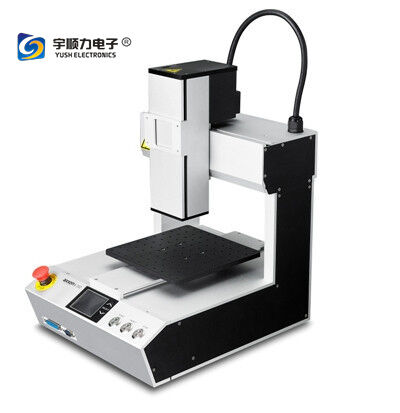

Perfect Glue Robot . XYZ Dispensing Robots

Name: Perfect Glue Robot . XYZ Dispensing Robots
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-S330
Price: 5 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YS-S330

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $5,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                XYZ dispensing robot for PCB, glue robot for depaneling, PCB depaneling machine with XYZ


Berat:	75kg	Wilayah kerja:	30030060 mm
Kelembaban Kerja:	20~90% tanpa kondensasi	Ukuran:	485505610mm
Voltase:	250W	Viskositas Pompa Lem:	hampir semua viskositas
Kepala pengeluaran:	satu atau lebih berdasarkan permintaan	Kekuatan:	220/110V
Kecepatan Maks:	500mm/detik	Kuantitas Pengeluaran Min:	0,001ml
Resolusi:	0,01mm	Pengulangan:	+/- 0,01mm
Ukuran:	460450480mm	Komponen inti:	Motor
sumbu:	3 atau 4

Berat:	75kg
Wilayah kerja:	30030060 mm
Kelembaban Kerja:	20~90% tanpa kondensasi
Ukuran:	485505610mm
Voltase:	250W
Viskositas Pompa Lem:	hampir semua viskositas
Kepala pengeluaran:	satu atau lebih berdasarkan permintaan
Kekuatan:	220/110V
Kecepatan Maks:	500mm/detik
Kuantitas Pengeluaran Min:	0,001ml
Resolusi:	0,01mm
Pengulangan:	+/- 0,01mm
Ukuran:	460450480mm
Komponen inti:	Motor
sumbu:	3 atau 4

Perfect Glue Robot . XYZ Dispensing Robots

Perfect Glue Robot - XYZ Dispensing Robots

Automatic Glue Dispenser

High-precision automated dispensing system for various industrial applications.

Key Specifications

Power	220/110 V
Voltage	250W
Working Area (XYZ)	30030060 mm (Customizable)
Speed	Max. 500mm/sec
Dispensing Quantity	Min. 0.001ml
Resolution	0.01mm
Repeatability	+/-0.01mm
Size (LWH)	460450480 mm
Weight	70KG

Compatible Materials

Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.

Application Capabilities

Can perform dotting, drawing lines, squares, circles, and various irregular patterns on surfaces, exterior walls, vertical planes, and product gaps.

Product Features

Full automatic robot with 3 or 4 axes
Dispensing path programmable in robot or imported from external computer
Easy operation with amendable holder and programs
Multiple independent running program storage
High precision with well-controlled glue application
Configurable with multiple dispensing heads
Wide dispensing area accommodating multiple products
Customizable working table available on request

Industry Applications

Electro-acoustic industry: speakers, buzzers, audio, headphones
Inductance industries: transformers, relays, coil motors
Communications industry: mobile phone components, radios, telephones
Computers and digital products: MP3/MP4 players, electronic toys
Switches, connectors, wires, and cable assemblies
Electronics: components, integrated circuits, circuit boards
Optical components and lenses
Mechanical hardware and battery boxes
LED manufacturing industries

Quality & Compliance

High quality construction with CE certification. Pre-production sampling and final inspection ensure consistent quality standards.
