High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser

Name: High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-S330
Price: 10 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YS-S330

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic AB glue dispensing robot, hot glue automatic dispenser machine, PCB depaneling glue dispensing robot


Berat:	75kg	Wilayah kerja:	30030060 mm
Kelembaban Kerja:	20~90% tanpa kondensasi	Ukuran:	485505610mm
Voltase:	250W	Viskositas Pompa Lem:	hampir semua viskositas
Kepala pengeluaran:	satu atau lebih berdasarkan permintaan	Kekuatan:	220/110V
Kecepatan Maks:	500mm/detik	Kuantitas Pengeluaran Min:	0,001ml
Resolusi:	0,01mm	Pengulangan:	+/- 0,01mm
Ukuran:	460450480mm	Model:	YS-S330
Komponen inti:	Pompa

Berat:	75kg
Wilayah kerja:	30030060 mm
Kelembaban Kerja:	20~90% tanpa kondensasi
Ukuran:	485505610mm
Voltase:	250W
Viskositas Pompa Lem:	hampir semua viskositas
Kepala pengeluaran:	satu atau lebih berdasarkan permintaan
Kekuatan:	220/110V
Kecepatan Maks:	500mm/detik
Kuantitas Pengeluaran Min:	0,001ml
Resolusi:	0,01mm
Pengulangan:	+/- 0,01mm
Ukuran:	460450480mm
Model:	YS-S330
Komponen inti:	Pompa

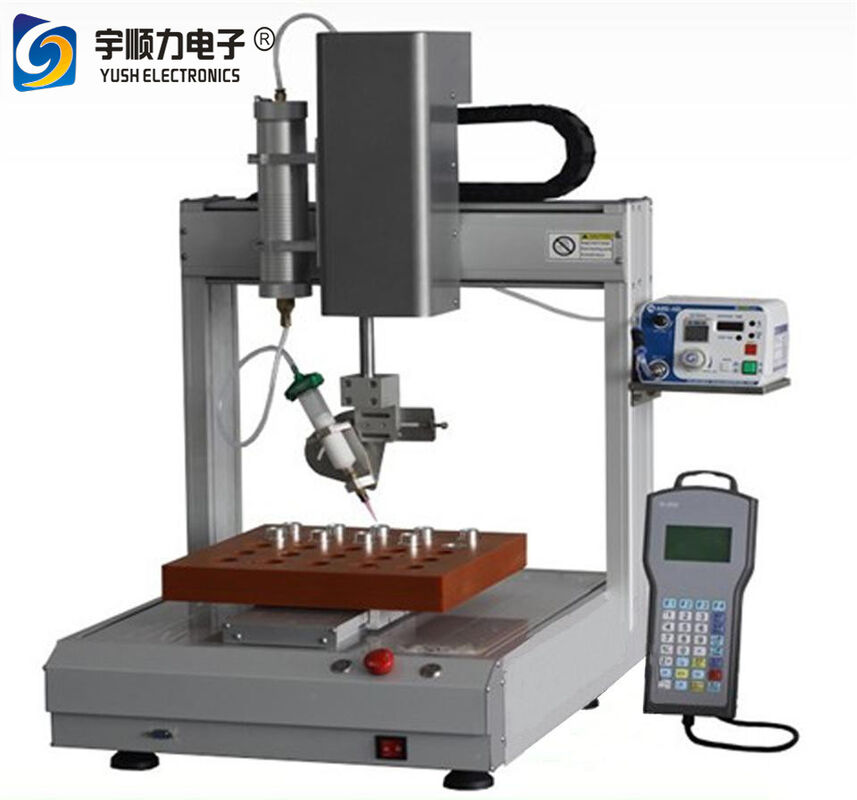

High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser

High Accuracy Automatic AB Glue Dispensing Robot

Professional hot glue automatic dispensing system with precision control for industrial applications.

Product Specifications

Compatible Adhesives	Silicone glue, UV glue, AB glue, EPOXY, COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint
Model	YS-S330
Power	220/110 V
Voltage	250W
Working Area (XYZ)	30030060 mm (Customizable)
Maximum Speed	500mm/sec
Dispensing Quantity	Minimum 0.001ml
Resolution	0.01mm
Repeatability	+/-0.01mm
Size (LWH)	460450480 mm
Weight	70KG

Application Capabilities

Can perform dot dispensing, draw lines, squares, circles and various irregular graphics on surfaces, outer walls, vertical planes, and product gaps.

Key Features

Full automatic robot with 3 or 4 axes movement

Dispensing path programmable directly on robot or imported from external computer

Easy operation with amendable holder and program settings

Multiple independent running program storage capability

High precision glue control system

Configurable for multiple dispensing heads

Wide dispensing area accommodating multiple products

Customizable working table available on request

Industry Applications

Electro-acoustic industry: speakers, buzzers, audio systems, headphones
Inductance industries: small transformers, SMD transformers, relays, small coil motors
Communications industry: mobile phone keyboards, phone shells, radios, telephones, fax machines
Computers and digital products: digital cameras, MP3/MP4 players, electronic toys
Switches, connectors, wires, plug cables
Electronics: components, integrated circuits, circuit board solder paste, LCD screens
Optics: lenses, optical heads
Mechanical hardware, battery boxes, trademarks, machinery spare parts
LED manufacturing industries

Quality & Certification

High quality construction with CE certification compliance. Features easy-to-amend holders and programs for flexible operation.

Packaging & Shipping

Manufacturer Information

YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on research, development and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, all products comply with international quality standards and serve markets worldwide.
