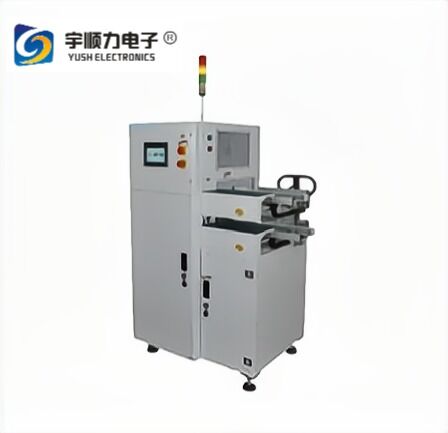

Name: Multifunction Vertical PCB Buffer
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-1T100L
Price: 10 USD
Availability: InStock

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Sertifikasi: CE

Nomor model: YS-1T100L

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Vertical PCB depaneling buffer, Multifunction PCB depaneling machine, PCB buffer with vertical operation


Berat:	220kg	Voltase:	220V
Sumber Daya:	220VAC 50/60Hz	Kapasitas PCB Maks:	15 buah
Beban PCB Maks:	2kg/PCB	Waktu Siklus:	15 detik
Nada pengindeksan:	20mm	Tekanan udara:	4-6 Bilah
Konsumsi Udara:	Maks. 15ltr/mnt	Ketebalan PCB:	menit 0,6 mm
Ukuran Model:	M, L, LL	Dimensi:	10009501560mm, 110010751560mm, 120012801560mm
Ukuran PCB yang Efektif:	5050-330250mm, 5050-445330mm, 5050-530390mm	Perkiraan Berat:	180kg, 220kg, 280kg
Media pembawa:	Rol yang tahan lama

Berat:	220kg
Voltase:	220V
Sumber Daya:	220VAC 50/60Hz
Kapasitas PCB Maks:	15 buah
Beban PCB Maks:	2kg/PCB
Waktu Siklus:	15 detik
Nada pengindeksan:	20mm
Tekanan udara:	4-6 Bilah
Konsumsi Udara:	Maks. 15ltr/mnt
Ketebalan PCB:	menit 0,6 mm
Ukuran Model:	M, L, LL
Dimensi:	10009501560mm, 110010751560mm, 120012801560mm
Ukuran PCB yang Efektif:	5050-330250mm, 5050-445330mm, 5050-530390mm
Perkiraan Berat:	180kg, 220kg, 280kg
Media pembawa:	Rol yang tahan lama

Multifunction Vertical PCB Buffer

AOI/SPI PCB Vertical Buffer - Advanced vertical buffer solution for SMT manufacturing lines

Key Features

User-friendly 'soft touch' LED membrane control panel
Multiple operating modes: OK pass through, Stock, NG reject, Awaiting definite, By Pass
Durable rollers as conveying medium (no belt replacement needed)
Fast, smooth and accurate indexing position with servo motor drive
Integrated "Threshold" system
Smooth and parallel width adjustment with lead screw drive
Compact machine footprint
SMEMA compatible interface

Technical Parameters

Application	Buffer between SMT machines
Maximum PCB Capacity	15 pieces or as specified
Maximum PCB Load	2kg per PCB
Cycle Time	Approximately 15 seconds
Indexing Pitch	20mm or as specified
Power Source	220VAC 50/60Hz
Air Pressure & Consumption	4-6 bar, 15ltr/min maximum
PCB Thickness	0.6mm minimum
