SMT Online Label Mounter in PCB Assembly Line

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $50,000-100,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT label mounter for PCB assembly, PCB depaneling machine with label mounting, online label mounter for SMT lines


Berat:	1250 kg	Kekuatan:	10 kw
Voltase:	220V/110V	ukuran PCB:	P50L80mm ~ L450L350mm; Ketebalan 0,5mm-6mm
Modus Operasi:	Gerakan X,Y,Z,R (Motor Servo)	Dimensi:	P1000L1200T1500 mm
Sistem Posisi:	CCD 5 juta	Tinggi Permukaan Atas:	<25mm
Kecepatan:	3500 buah/jam	Ukuran Label:	33 ~ 5050mm
Ketepatan pelabelan:	±0,05mm	Sudut Pelabelan:	360°
Masukan Pengumpan:	2 \| 1	Catu daya:	AC220V/50Hz, 1kva
Pencetak Dalaman:	Merk Zebra

Berat:	1250 kg
Kekuatan:	10 kw
Voltase:	220V/110V
ukuran PCB:	P50L80mm ~ L450L350mm; Ketebalan 0,5mm-6mm
Modus Operasi:	Gerakan X,Y,Z,R (Motor Servo)
Dimensi:	P1000L1200T1500 mm
Sistem Posisi:	CCD 5 juta
Tinggi Permukaan Atas:	<25mm
Kecepatan:	3500 buah/jam
Ukuran Label:	33 ~ 5050mm
Ketepatan pelabelan:	±0,05mm
Sudut Pelabelan:	360°
Masukan Pengumpan:	2 \| 1
Catu daya:	AC220V/50Hz, 1kva
Pencetak Dalaman:	Merk Zebra

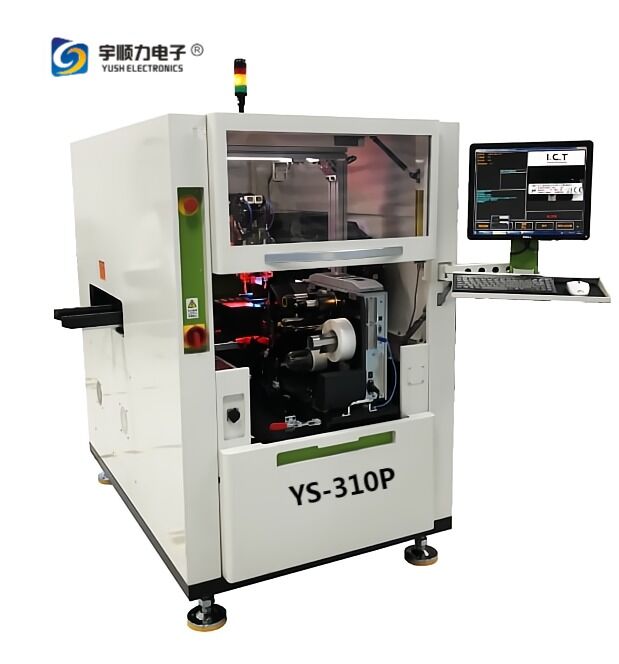

SMT Online Label Mounter in PCB Assembly Line

4 Heads Multi-Function SMT Automatic Labeling Machine

This advanced unit is designed for mounting various barcodes labels (1D, 2D, labels with different background paper colors) and film products (translucent, opaque, different colors, different thicknesses) in PCB assembly lines.

Key Features

R&D, design and manufacturing in Taiwan
In-line/Off-Line operation modes
X, Z, R axis with servo modules for high precision and speed
Adsorbing and mounting of printed roll-up labels
Print-and-paste functionality with optional printer
Barcode reading and validation with optional reader
Z-axis adaptation for PCBA at different heights
Standard 2 groups of mounting heads for simultaneous label adsorption
Independent vacuum detection for each mounting head
Online database system for barcode information management
360° servo rotation for precise mounting control
600dpi latest Zebra industrial grade printer
5 million industrial cameras with three-color light source
MES system interconnection for production statistics

Technical Specifications

Item	YS-310	YS-310P
Internal Printer	N/A	Zebra Brand
Speed	3500Pcs/H
Label Size	33 ~ 5050mm
Labeling Precision	±0.05mm
Labeling Angle	360°
Feeder Input	2	1
PCB Size	L50W80mm ~L450 W350mm; Thickness 0.5mm-6mm
Top Surface Height of PCB	<25mm
Position System	5M CCD
Operation Mode	X,Y,Z,R movement (Servo Motor)
Power	AC220V/50Hz, Total power: 1kva
Body Size	L1000 W1200 H1500 mm
Machine weight	1250Kg
