Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high speed vacuum loader for LED, efficient PCB depaneling machine, LED light vacuum loader


Berat:	420KG	Voltase:	220V
Sumber Daya:	AC 220V, 50/60Hz, 1 fase	Kapasitas PCB Maks:	250mm
Waktu pengumpanan PCB:	10 detik	Tinggi Konveyor:	950 ± 30 mm
Jenis Nozel:	3 atau 8	Konsumsi Daya:	300 Maks
Tekanan udara:	4-6 Bilah	Konsumsi Udara:	30 l/mnt Maks
Ukuran PCB yang Efektif:	80x80 - 1200X300 mm	Dimensi Mesin:	1500X1028X1519 mm
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor	Kompatibilitas SMEMA:	Ya
Kontrol Kecepatan:	Ya

Berat:	420KG
Voltase:	220V
Sumber Daya:	AC 220V, 50/60Hz, 1 fase
Kapasitas PCB Maks:	250mm
Waktu pengumpanan PCB:	10 detik
Tinggi Konveyor:	950 ± 30 mm
Jenis Nozel:	3 atau 8
Konsumsi Daya:	300 Maks
Tekanan udara:	4-6 Bilah
Konsumsi Udara:	30 l/mnt Maks
Ukuran PCB yang Efektif:	80x80 - 1200X300 mm
Dimensi Mesin:	1500X1028X1519 mm
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Kompatibilitas SMEMA:	Ya
Kontrol Kecepatan:	Ya

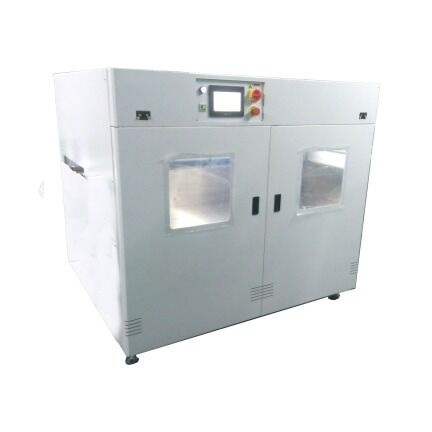

High Speed and High Efficiency Vacuum Loader for LED Lights

Key Features

User-friendly touch screen control for easy operation
Enclosed design ensures high level of safety
Adjustable vacuum stubs positions with magnetic mounting
3 or 8 nozzles type available to match PCB surface requirements
Conveyor height: 950±30mm
SMEMA compatible for seamless integration

Available Options

Automatic width adjustment
Mechanical stopper
Different belt width and chain system configurations
Safety interlocker
Speed control

Technical Specifications

Power Consumption	300W Max
Air Pressure & Consumption	4-6 bar, 30 l/min Max.
Weight	420 Kg
Effective PCB Size (LxW)	80x80 - 1200x300 mm
Machine Dimensions	1500x1028x1519 mm
