High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine

Name: High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-5600
Price: 14.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YS-5600

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $13,800-16,800 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high-efficiency PCBA cleaning machine, visible interface PCB depaneling machine, easy operation PCBA cleaning equipment


Berat:	460kg	Membersihkan ukuran keranjang:	L610 x W560 x H100 (mm) x2 lapisan
Kapasitas tangki semprot:	17L	Kapasitas konsentrasi:	32L
Kapasitas pengenceran:	60L	Waktu bersih:	5~20 menit
Waktu bilas:	1 ~ 2 mnt / kali	Bilas kali:	1~99 kali
Waktu kering udara panas:	10~30 menit	Suhu panas deterjen:	Suhu ruangan~60°C
Suhu udara panas PCB:	Suhu ruangan~99°C	Kisaran resistivitas:	0~18MΩ
Pasokan air di:	30~65L/menit	Tekanan air DI:	0,2~0,4Mpa
Catu daya:	AC380V/50A/50HZ,30KW,0,5Mpa

Berat:	460kg
Membersihkan ukuran keranjang:	L610 x W560 x H100 (mm) x2 lapisan
Kapasitas tangki semprot:	17L
Kapasitas konsentrasi:	32L
Kapasitas pengenceran:	60L
Waktu bersih:	5~20 menit
Waktu bilas:	1 ~ 2 mnt / kali
Bilas kali:	1~99 kali
Waktu kering udara panas:	10~30 menit
Suhu panas deterjen:	Suhu ruangan~60°C
Suhu udara panas PCB:	Suhu ruangan~99°C
Kisaran resistivitas:	0~18MΩ
Pasokan air di:	30~65L/menit
Tekanan air DI:	0,2~0,4Mpa
Catu daya:	AC380V/50A/50HZ,30KW,0,5Mpa

High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine

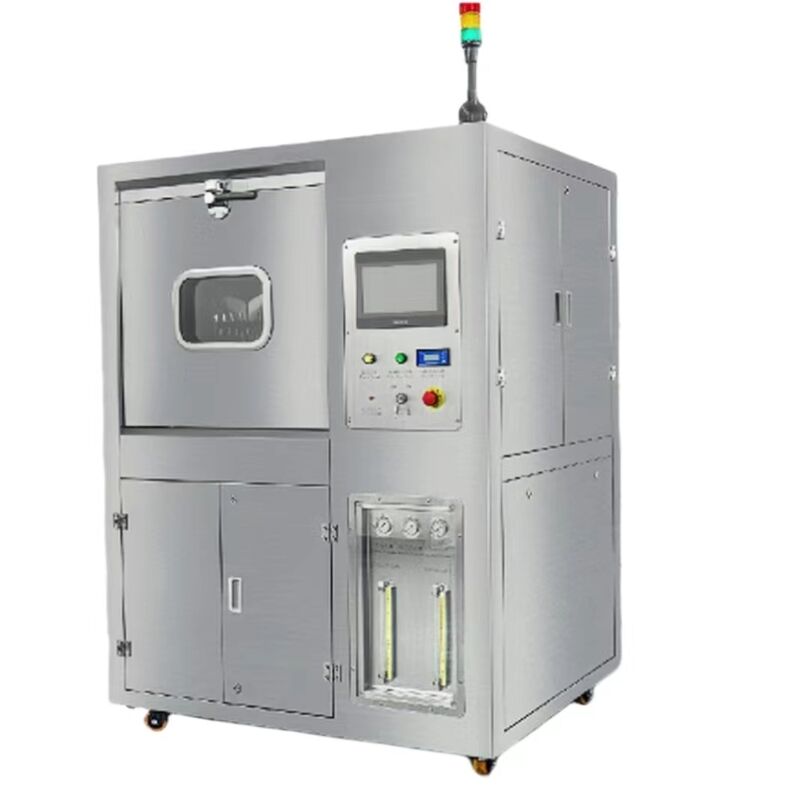

YS-5600 High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine

Key Features

Effectively cleans rosin flux, water-soluble flux, non-clean flux, solder paste and other organic/inorganic contaminants
2-layer cleaning basket: 610mm(L) × 560mm(W) × 100mm(H) per layer
Large observation window for visible process monitoring
Heated detergent system improves cleaning efficiency and reduces cycle time
Easy operation interface with quick parameter settings and password protection
Internal filtration system for detergent reuse with real-time DI water resistivity monitoring (0-18 MΩ)
Compressed air system recovers remaining detergent from pumps and pipes, saving up to 50% detergent
High cleanliness standards meeting IPC-610D Class I requirements for ionic contamination
Durable SUS304 stainless steel construction

Technical Specifications

Model	YS-5600
Cleaning Basket Size	L610 × W560 × H100 (mm) × 2 layers
Spray Tank Capacity	17L
Concentrate Capacity	32L
Dilution Capacity	60L
Clean Time	5-20 minutes
Rinse Time	1-2 minutes per cycle
Rinse Cycles	1-99 times
Hot Air Dry Time	10-30 minutes
Detergent Heating Temperature	Room temperature to 60°C
PCB Hot Air Dry Temperature	Room temperature to 99°C
Resistivity Range	0-18 MΩ
Detergent Filter	0.22μm
Rinse Water Filter	0.22μm
Air Filter	10μm
DI Water Supply	30-65 L/Min
DI Water Pressure	0.2-0.4 MPa
Vent Size	Φ76 × H50 (mm)
Power/Air Supply	AC380V/50A/50HZ, 30KW, 0.5MPa
Machine Dimensions	L1300 × W1200 × H1850 (mm)
Machine Weight	460 kg

Manufacturer Profile

YUSH Electronic Technology Co., Ltd. was founded in 2005 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling electronic equipment machinery.

YUSH features advanced production equipment and an experienced development team, with half of the staff having over 10 years of experience in the electronic equipment industry.

Since beginning development in 2004, the company has focused on product quality, safety, and innovation, producing high-quality, stable-performance, cost-effective PCB separation equipment including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types.

YUSH products serve customers worldwide and the company has become one of China's largest PCB separator production bases.
