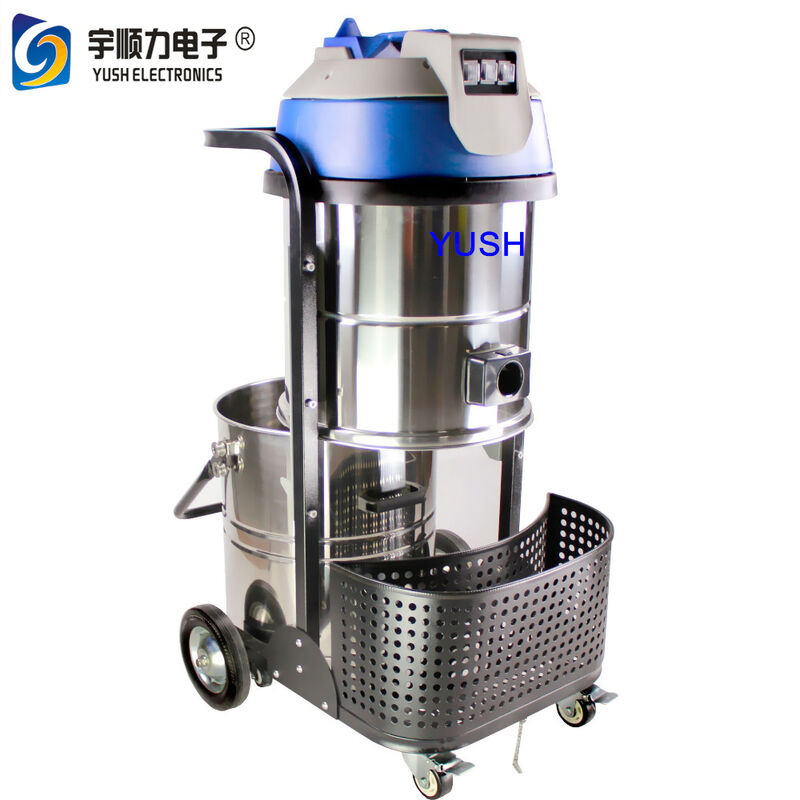

Three-phase Large Industrial Vacuum Cleaners

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Sertifikasi: ce

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $1,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                three-phase industrial vacuum cleaner, large industrial vacuum cleaner, PCB depaneling machine vacuum


Berat:	30kg	Kekuatan:	2 kw
Voltase:	220V, 380V	Ukuran:	11568142 cm
Daerah penyaring:	2,8m2	Aliran udara:	530 m3/jam
Volume:	100 l	Hisap Vakum:	32Kpa
Berat bersih:	189 kg	panjang kabel:	8 m
Tingkat Kebisingan:	75dB	Penyaringan presisi:	0,3 mm
Efisiensi Pengumpulan Debu:	99.9995%	Lebar Pembersihan:	50 cm
Frekuensi:	50/60Hz

Berat:	30kg
Kekuatan:	2 kw
Voltase:	220V, 380V
Ukuran:	11568142 cm
Daerah penyaring:	2,8m2
Aliran udara:	530 m3/jam
Volume:	100 l
Hisap Vakum:	32Kpa
Berat bersih:	189 kg
panjang kabel:	8 m
Tingkat Kebisingan:	75dB
Penyaringan presisi:	0,3 mm
Efisiensi Pengumpulan Debu:	99.9995%
Lebar Pembersihan:	50 cm
Frekuensi:	50/60Hz

Three-phase Large Industrial Vacuum Cleaners

YSVC-2600 Three-phase Industrial Vacuum Cleaner

Volume	100 L
Voltage	380 V
Power	7.5 KW
Vacuum Suction	32 Kpa
Filter Area	28000 cm²
Airflow	530 m³/H
Net Weight	189 KG
Cable Length	8 m
Package Size	115 × 68 × 142 cm

Technical Features

Performance Specifications

Machine noise level: 75 DB | Filtering precision: 0.3 μm

Safety & Protection

Comprehensive safety features including overheating, overload, and open phase protection for secure operation.

Motor Technology

Advanced motor utilizing German technology (Siemens OEM factory) with dual-frequency (50/60 Hz) and wide voltage design for global compatibility.

Bearing System

Equipped with NSK bearings for reliable high-temperature operation, enhancing fan reliability and service life.

Filtration System

Continuous long-hour operation capability
Innovative antistatic polyester fiber with 28000 cm² filtering area
Smooth surface reduces dust adhesion rate by 80%
Filter blockage time extended over 21 times compared to traditional filters
4-layer high-efficiency filtration system filters 0.3 μm dust particles
99.9995% dust collection efficiency with 100% dry discharge air
Manual cleaning function with easy handle bar operation
Filter cleaning possible during machine operation

Construction & Design

Stainless steel (304) body and dust collection barrel for enhanced durability
Superior load bearing and resistance capabilities
Separable dust collection barrel for easy waste disposal
Large 100 L capacity for higher collection efficiency
Stainless steel muffler for quieter operation and air filtration
Integrated rear basket for power cord and accessory storage
50 cm wide dust brush with pulley for easy maneuverability
Replaceable brush head to reduce maintenance costs

Applications

Ideal for factory machinery and equipment cleaning, handling production waste including iron filings, plastic spraying grinding dust, sawdust, ceramic processing dust, and various industrial cleaning applications.
