Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Large SMT PCB cleaning machine, PCB stencil resin cleaner, Hot air drying PCB depaneling machine


Berat:	500kg	Kekuatan:	10 kw
Voltase:	220V/380V	Ukuran stensil maksimal:	P800 x L750 x T40(mm)
Waktu mencuci:	2~5 menit	Modus kering:	Udara Panas Kering
Catu daya:	AC380V,50/60HZ,33KW	Tangki kimia:	50x2 buah
Waktu resin:	2~5 menit	Waktu Kering:	3~5 menit
suhu panas cair:	0 ~ 60 ℃	Suhu kering:	0~90℃
Cuci tenaga panas:	9KW	Kekuatan panas resin:	9KW
Daya Udara Panas:	6kw

Berat:	500kg
Kekuatan:	10 kw
Voltase:	220V/380V
Ukuran stensil maksimal:	P800 x L750 x T40(mm)
Waktu mencuci:	2~5 menit
Modus kering:	Udara Panas Kering
Catu daya:	AC380V,50/60HZ,33KW
Tangki kimia:	50x2 buah
Waktu resin:	2~5 menit
Waktu Kering:	3~5 menit
suhu panas cair:	0 ~ 60 ℃
Suhu kering:	0~90℃
Cuci tenaga panas:	9KW
Kekuatan panas resin:	9KW
Daya Udara Panas:	6kw

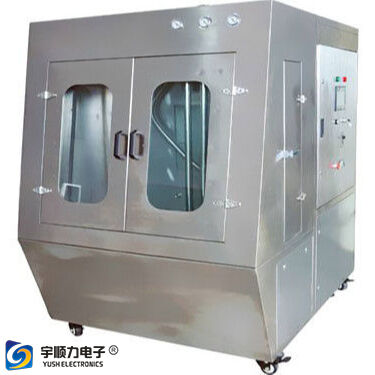

Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying

Large Size SMT PCB / Stencil Resin Cleaning Machine with Hot Air Drying

Recommended Stencil Cleaning Machine AC380V - Wash, Resin and Dry 3-in-1 System

Pneumatic stencil cleaner designed for industrial applications
High-quality electrical pump with high-pressure wash, resin, and dry processes
Total SUS 304 stainless steel structure resistant to acid and alkali corrosion
Durable construction with over 10-year lifespan
One-key automated operation with preset cleaning procedures
Versatile cleaning capability for SMT stencils, silk screens, print jigs, squeegees, large PCBA, and misprint PCBs
Completely closed spray developing process for clean workshop environment
Premium electrical and pneumatic components from Germany, USA, and Japan
Modular design for easy maintenance and service
Touch panel interface for quick parameter setting including chemical temperature, wash time, resin time/temperature, and dry time/temperature

Technical Specifications

Maximum Stencil Size	L800 x W750 x H40 (mm)
Chemical Tank Capacity	50L x 2 units
Wash Time	2~5 minutes
Resin Time	2~5 minutes
Dry Time	3~5 minutes
Resin Cycle	1~99 cycles
Cleaning Chemical	Water-based chemicals
Resin DI Water	Open loop DI water or closed loop chemical spray
Drying Mode	Hot air drying
Liquid Heating Temperature	0~60℃
Drying Temperature	0~90℃
Wash Heating Power	9KW
Resin Heating Power	9KW
Hot Air Power	6KW
Clean/Resin Filter	0.45μm
Resistivity Range	0~18MΩ
Power Supply	AC380V, 50/60Hz, 33KW
Machine Dimensions	1580 x 1180 x 1860mm (L x W x H)
