High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $23,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High-Efficiency PCB cleaning machine, In-line PCB depaneling machine, Continuous manufacturing PCB cleaner


Berat:	185 kg	Kekuatan:	10 kw
Voltase:	220v, 110v	Model:	YS-750
Ukuran stensil maksimal:	P750 x L750 x T40 mm	Kapasitas tangki cair:	Maks: 40L; Minimal: 20L
Waktu bersih:	4~6 menit	Waktu Kering:	4~10 menit
Pasokan Udara:	0,5~0,7 MPa	Konsumsi Udara:	400~600 L/mnt
Sistem Penyaring:	20um/5um/1um (3 tingkat)	Ukuran mesin:	P700 x L1000 x T1650 mm
Berat mesin:	185 kg	Bahan:	Sus 304
Jangka hidup:	10 tahun

Berat:	185 kg
Kekuatan:	10 kw
Voltase:	220v, 110v
Model:	YS-750
Ukuran stensil maksimal:	P750 x L750 x T40 mm
Kapasitas tangki cair:	Maks: 40L; Minimal: 20L
Waktu bersih:	4~6 menit
Waktu Kering:	4~10 menit
Pasokan Udara:	0,5~0,7 MPa
Konsumsi Udara:	400~600 L/mnt
Sistem Penyaring:	20um/5um/1um (3 tingkat)
Ukuran mesin:	P700 x L1000 x T1650 mm
Berat mesin:	185 kg
Bahan:	Sus 304
Jangka hidup:	10 tahun

High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes

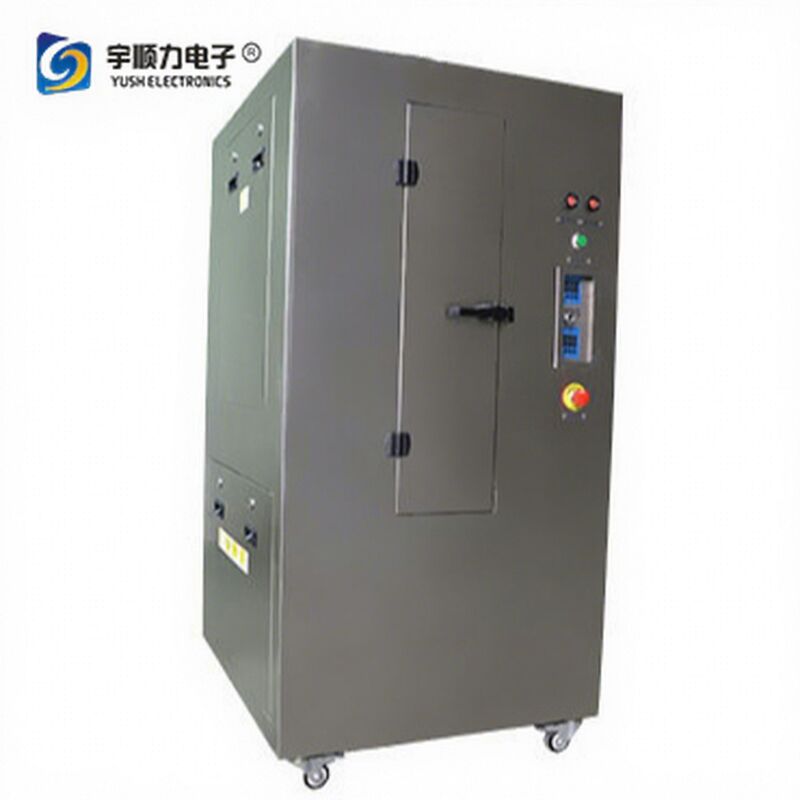

The YS-750 pneumatic stencil cleaner is engineered for solder paste and red glue printing stencil cleaning in SMT processes. Powered by compressed air and constructed with premium pneumatic components through advanced manufacturing processes, this machine delivers efficient, reliable performance and superior cleaning results. With simple "one-button" operation, the system automatically completes both cleaning and drying cycles. The specially designed piping and patented rotation pod system ensure consistent jet pressure across the stencil surface.

Machine Features

Ultrasonic Cleaning Machines and Stencil Ultrasonic Cleaning Machines
3-level precise filtering system for clean liquid recycling and reuse
Premium international pneumatic components ensure machine stability and reliability
SUS 304 stainless steel construction with acid and alkali corrosion resistance, designed for 10+ year lifespan
Fully compressed air driven operation eliminates electrical spark risks and fire hazards
One-button automated operation for complete clean and dry cycles
Specialized rotate rod and nozzle design ensures optimal cleaning quality and maintains stencil tension
Automatic liquid fill and drain functions for operational convenience
Liquid recycling system minimizes consumption and operating costs
Inner-lock safety door automatically stops operation when opened for operator protection

Technical Specifications

Model Number	YS-750
Maximum Stencil Size	L750 x W750 x H40 (mm)
Liquid Tank Capacity	Maximum: 40L; Minimum: 20L
Cleaning Time	4-6 minutes
Drying Time	4-10 minutes
Air Supply	0.5-0.7 MPa
Air Consumption	400-600 L/min
Cleaning Type	360° rotate jet clean + compressed air blow dry
Filter System	20μm/5μm/1μm (3-level filtration)
Machine Dimensions	L700 x W1000 x H1650 (mm)
Machine Weight	185 kg
