High Quality X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System Manufacturer

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $35,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Microfocus X-Ray inspection system, PCB depaneling machine with warranty, YSL-X5600 X-Ray solution


Voltase:	220V	Kekuatan:	1,5 KW
Berat:	750 kg	Ukuran:	85010001700mm
Komponen inti:	PLC, mesin, bantalan, gearbox, motor, bejana tekanan	Resolusi:	Resolusi tinggi
Modus Inspeksi:	Inspeksi CNC	Kontrol Tabel:	X, Y, Z gerak tiga sumbu
Penyesuaian kecepatan:	Kecepatan rendah, normal, tinggi	Kontrol tegangan:	Kumpulan perangkat lunak
Kontrol saat ini:	Kumpulan perangkat lunak	Pengaturan gambar:	Kecerahan, kontras, penguatan otomatis, eksposur
sistem anti-tabrakan:	Maksimalkan kemiringan dan observasi	Analisis Otomatis:	Diameter, proporsi rongga, luas, kebulatan
Navigasi:	Navigasi otomatis inframerah

Voltase:	220V
Kekuatan:	1,5 KW
Berat:	750 kg
Ukuran:	85010001700mm
Komponen inti:	PLC, mesin, bantalan, gearbox, motor, bejana tekanan
Resolusi:	Resolusi tinggi
Modus Inspeksi:	Inspeksi CNC
Kontrol Tabel:	X, Y, Z gerak tiga sumbu
Penyesuaian kecepatan:	Kecepatan rendah, normal, tinggi
Kontrol tegangan:	Kumpulan perangkat lunak
Kontrol saat ini:	Kumpulan perangkat lunak
Pengaturan gambar:	Kecerahan, kontras, penguatan otomatis, eksposur
sistem anti-tabrakan:	Maksimalkan kemiringan dan observasi
Analisis Otomatis:	Diameter, proporsi rongga, luas, kebulatan
Navigasi:	Navigasi otomatis inframerah

High Quality X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System Manufacturer

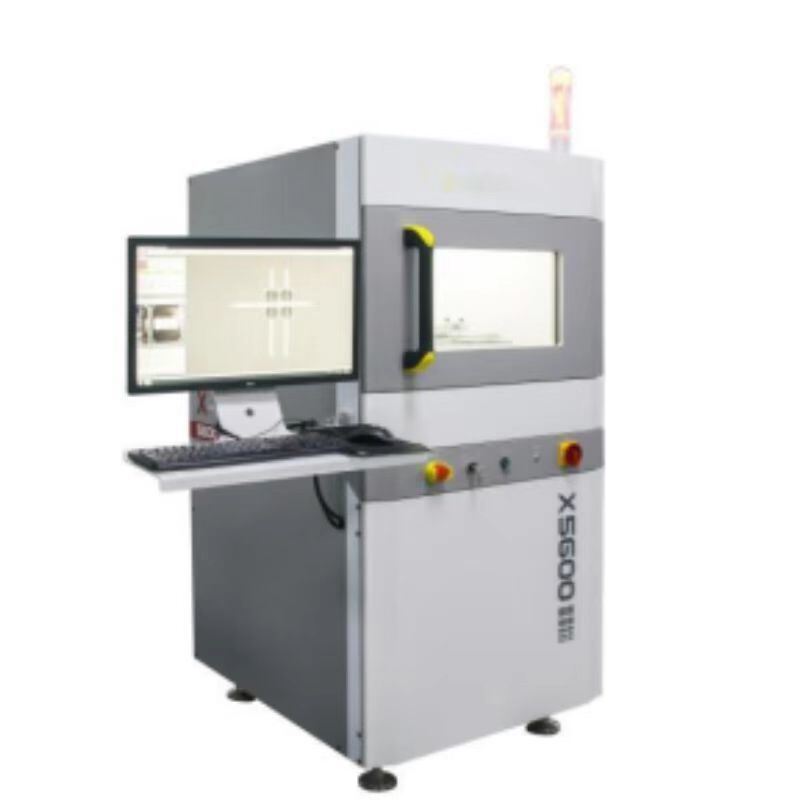

YSL-X5600 Microfocus X-Ray Inspection System

High precision microfocus X-ray inspection system for advanced electronic component analysis

Applications

Functions and Features

Application Advantages

Miniaturized equipment, easy to install and operate
Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging, Sensors and other fields products inspection
High resolution design to get the best image in a very short time
Infrared automatic navigation and positioning function can select the shooting location quickly
CNC inspection mode which can quickly and automatically inspect multi-point array
Inclined multi-angle inspection makes it easier to inspect sample defects
Simple software operation, low operating costs
Long lifespan

Automatic Void Ratio Calculation

Enhanced BGA inspection function: YSL-X5600 can quickly select and mark a single solder ball, or select the solder balls to be inspected by matrix box; it can manually or automatically identify BGA solder balls and complete the inspection. Follow the system guidelines to easily complete the inspection process and ensure accurate and reliable inspection results.

Size Measurement

Measuring tools include distance, distance ratio, lines distance, angle, arrow mark, circle radius, points distance, circle centers distance, circumference, hand-drawn polygon, hand-drawn freeform etc., with text description capabilities.

Hardware Technical Parameters

Software Technical Parameters

Table Control

Speed of table can be adjusted by the spacebar: low, normal and high speed
X, Y, Z three-axis motion and inclined angle are controlled by keyboard
Large navigator view, clear navigation image, table will move to where you click the mouse

CNC Programming

Simply click the mouse and you can write programs
Object table moves along X, Y direction for positioning; X-ray tube move along Z direction for positioning
Voltage and current set by software
Image settings: brightness, contrast, auto gain and exposure
Users can change the pause time for program conversion
Anti-collision system can maximize the tilt and observation of the workpieces
Automatic analysis on diameter, proportion of cavity, area and roundness of BGA

X-Ray Working Principle

X-RAY Applications
