High Quality Online High-speed Real-time Inspection Series/YS-8500

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $30,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine high-speed, YS-8500 real-time inspection, online PCB inspection machine


Voltase:	160KV	Kekuatan:	64W
Berat:	2950	Ukuran:	1600mm1700mm2000mm
Kemampuan pemeriksaan cacat:	0,5um	Metode inspeksi:	2D/3D/CT
Fungsi CT planar:	PCT	CT balok kerucut:	Ya
Mode Observasi:	Titik tetap 360°	Inspeksi kekosongan 2D:	Opsional
Analisis pengukuran 3D:	Opsional	Komponen inti:	Mesin, Bantalan, Gearbox, Motor, Kapal Tekanan, Gear
Desain tabung sinar-X:	KOMET terbuka	Bidang Aplikasi:	PCB, BGA, IC, IGBT, Wafer, Sensor, Relay, Motor mikro, Material
Kemampuan inspeksi:	Analisis non-destruktif

Voltase:	160KV
Kekuatan:	64W
Berat:	2950
Ukuran:	1600mm1700mm2000mm
Kemampuan pemeriksaan cacat:	0,5um
Metode inspeksi:	2D/3D/CT
Fungsi CT planar:	PCT
CT balok kerucut:	Ya
Mode Observasi:	Titik tetap 360°
Inspeksi kekosongan 2D:	Opsional
Analisis pengukuran 3D:	Opsional
Komponen inti:	Mesin, Bantalan, Gearbox, Motor, Kapal Tekanan, Gear
Desain tabung sinar-X:	KOMET terbuka
Bidang Aplikasi:	PCB, BGA, IC, IGBT, Wafer, Sensor, Relay, Motor mikro, Material
Kemampuan inspeksi:	Analisis non-destruktif

High Quality Online High-speed Real-time Inspection Series/YS-8500

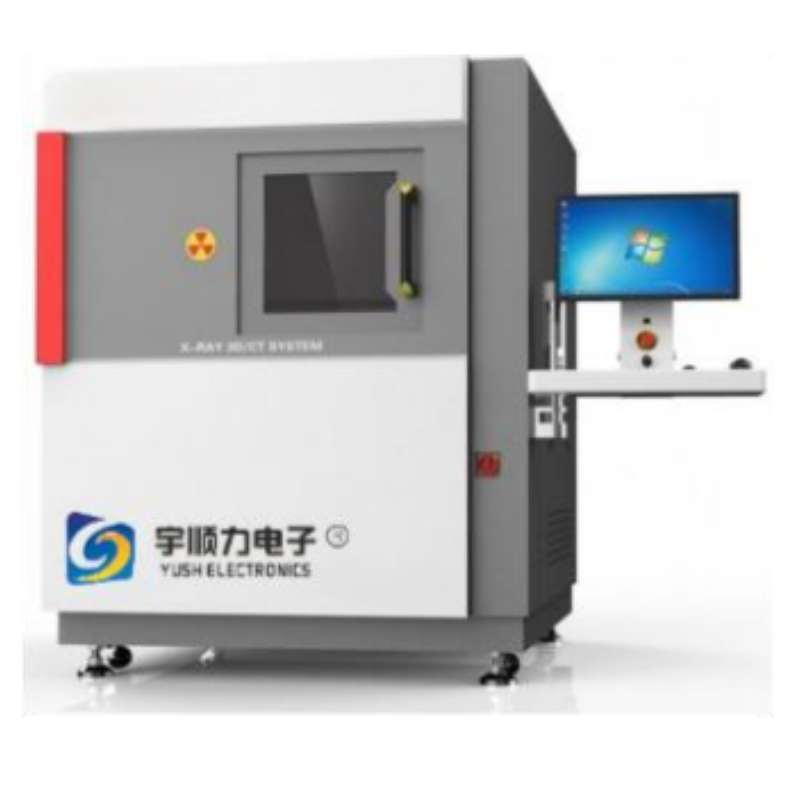

YS-8500 Universal X-Ray Inspection System

The YS-8500 utilizes COMET's open X-ray tube design, delivering exceptional defect inspection capability reaching 0.5μm. This advanced system supports multiple inspection methods including 2D, 3D, and CT imaging, making it ideal for quality inspection, 3D measurement, and non-destructive analysis applications.

Application Advantages

Planar CT (PCT) functionality for 3D/CT inspection of printed circuit boards, SMT components, IGBT modules, wafers, and more
Cone beam CT capability for comprehensive inspection of sensors, relays, micro motors, materials, and aluminum castings
Convenient 360° fixed-point observation mode for detailed analysis
Optional 2D void inspection software module
Optional 3D measurement and analysis software module

Application Fields

Electronics & Semiconductor: Soldering quality inspection of PCB solder joints, BGA components, integrated circuits (IC) and bond wire inspection, semiconductor package inspection and internal connection analysis, electronic power (IGBT) module inspection, wafer defect inspection (WLCSP)

Industrial Components: Inspection of sensors, relays, fuses, coils, micro drive systems, air bag control systems, micro motors (MEMS, MOEMS), cables and plugs, plastic components

Materials & Castings: Comprehensive analysis of various materials including plastics, ceramics, biological materials, optical components, and small titanium and aluminum castings

Product Parameters
