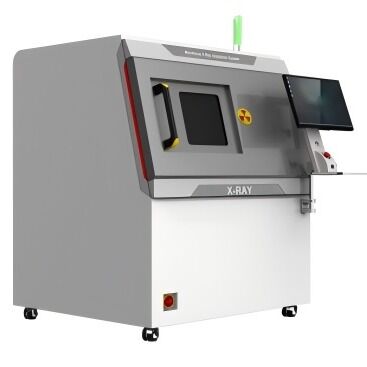

High Efficiency X-Ray Solution YS-X6600,Microfocus X-Ray Inspection System Manufacturer

Name: High Efficiency X-Ray Solution YS-X6600,Microfocus X-Ray Inspection System Manufacturer
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-X6600
Price: 344.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Nomor model: YS-X6600

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $38,650 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Microfocus X-Ray inspection system, High efficiency X-Ray solution YS-X6600, PCB depaneling X-Ray machine


Berat:	1170kg	Model:	YS-X6600
Ukuran standar:	540mm*450mm	Tegangan Tabung:	40-90KV
Kekuatan Total:	1700W	Arus tabung:	10-200uA
Ukuran Titik Fokus:	5-15μm	Tipe Detektor:	Detektor panel datar digital HD (FPD)
Area pencitraan:	130mm*130mm	Matriks piksel:	1536*1536 piksel
Sudut miring:	0-60 °	Akurasi pengujian berulang:	3μm
Kecepatan pemeriksaan perangkat lunak:	3,0 dtk/titik	Area Inspeksi yang Efektif:	500mm×420mm
Kapasitas Beban:	≤5kg	Ukuran:	1245mm(P) * 1230mm(L) * 1900mm(T)
Catu daya:	AC 110-220V (+10%)

Berat:	1170kg
Model:	YS-X6600
Ukuran standar:	540mm*450mm
Tegangan Tabung:	40-90KV
Kekuatan Total:	1700W
Arus tabung:	10-200uA
Ukuran Titik Fokus:	5-15μm
Tipe Detektor:	Detektor panel datar digital HD (FPD)
Area pencitraan:	130mm*130mm
Matriks piksel:	1536*1536 piksel
Sudut miring:	0-60 °
Akurasi pengujian berulang:	3μm
Kecepatan pemeriksaan perangkat lunak:	3,0 dtk/titik
Area Inspeksi yang Efektif:	500mm×420mm
Kapasitas Beban:	≤5kg
Ukuran:	1245mm(P) * 1230mm(L) * 1900mm(T)
Catu daya:	AC 110-220V (+10%)

High Efficiency X-Ray Solution YS-X6600,Microfocus X-Ray Inspection System Manufacturer

High Efficiency X-Ray Solution YS-X6600

Advanced microfocus X-ray inspection system designed for precision industrial applications with superior detection capabilities.

Applications

Semiconductor	Automotive electronics	PCB'A	LED
BGA/QFN inspection	Aluminum die casting	Mould	Electrical and mechanical components
Biological agriculture seed	Aviation component	Wheel hub	Wire/USB/Plug

Functions and Features

Function	Advantages
X-ray tube and detector can move along Z direction, Speed of table moving along X-Y direction can be adjusted	Larger effective detection range, improving the magnification and the detection efficiency of the product
High-definition digital flat panel detector. Max Inclined Angle is 60°, samples can be observed with a unique perspective	Easy to identify the side defects of the product and achieve no dead angle detection
Long life X-ray tube, maintenance free for life	Adopt the world's top Japanese Hamamatsu X-ray source
Fault less than 2.5μm can be detected. High detection repeat accuracy	Easy to distinguish the gold wire bending and break of the semiconductor package
Powerful CNC Measuring Function, can test automatically, testing program can be edited	Suitable for large-scale inspection and improve detection efficiency
Large inspection space, can put various large-sized samples. The table can carry 10KG items	Large table for large industrial control boards, ultra-long LED strips, and electronic products for various fields
Large navigation view, table will move to where you click the mouse	Very easy to operate, quickly find item defects and improve detection efficiency

Hardware Technical Parameters

Tube type	Sealed microfocus X-ray tube
Tube voltage	Tube voltage
Tube current	10-200uA (software limited to 89uA)
Focal spot size	5-15μm
Cooling method	Convection cooling
Detector type	HD digital flat panel detector (FPD)
Imaging area	130mm*130mm
Pixel matrix	1536*1536 pixels
Inclined Angle	0-60°
Repeated test accuracy	3μm
Software inspection speed	3.0s/point (Excluding loading and unloading time)
Standard size	540mm*450mm
Effective inspection area	500mm×420mm
Load capacity	≤5Kg
Operating platform	Mouse, keyboard, 2 operating modes
Inner lead plate	5 mm thick lead plate (isolate radiation)
Dimensions	1245mm(L) * 1230mm(W) * 1900mm(H)
Weight	1170Kg
Power supply	AC 110-220V (+10%)(international general power supply)

Software Technical Parameters

BGA short	Preset NG images, software contrasts and recognizes automatically
BGA false solder	Preset NG images, software contrasts and recognizes automatically
Area measurement	Preset area size standard, NG product prompt function
Size measurement	Distance, gold line curvature, slope, angle, etc.
Automatic positioning	Power on table auto zero function, system reset
Control mode	CNC Automatic control, manual control keyboard, mouse, 3 modes are optional

Table Control Features

Speed of table can be adjusted by the spacebar: low, normal and high speed
X, Y, Z three-axis motion and inclined angle are controlled by keyboard
Large navigator view, clear navigation image, table will move to where you click the mouse

CNC Programming Capabilities

Simply click the mouse and you can write programs
Object table moves along X, Y direction for positioning; X-ray tube and detector move along Z direction for positioning
Voltage and current set by software
Image settings: brightness, contrast, auto gain and exposure
Users can change the pause time for program conversion
Anti-collision system can maximize the tilt and observation of the workpieces
Automatic analysis on diameter, proportion of cavity, area and roundness of BGA

X-Ray Working Principle
