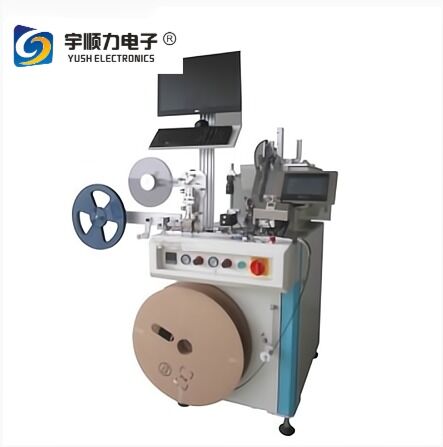

YS-12T-Automatic Tape and Reel Packaging Equipment

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Sertifikasi: CE

Nomor model: YS-12T

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $6,000 / set

Dapatkan Harga Terbaik
Menyoroti:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Berat:
160kg
Voltase:
220VAC
Sumber Daya:
Tegangan AC200V/50Hz
Tekanan Udara Kerja:
0,40~0,6Mpa
Kapasitas:
3K-15K UPH
Sistem kendali:
Pengontrol Logika yang Dapat Diprogram+Layar Sentuh+motor servo
Kontrol Suhu:
Kontrol Suhu PID
Memberi Makan dan Menerima:
Cakram karet dan cakram kertas sesuai standar EIA-481
Lebar pita:
12,16mm
Formulir Penyegelan:
Segel panas dan dingin
Tegangan Masukan:
AC220V/50Hz
Arus Maksimum:
10A
Ukuran mesin:
2030*528*583(L*L*T)
Berat bersih:
160kg
Konfigurasi selektif:
Sistem Deteksi Gambar
Berat:
160kg
Voltase:
220VAC
Sumber Daya:
Tegangan AC200V/50Hz
Tekanan Udara Kerja:
0,40~0,6Mpa
Kapasitas:
3K-15K UPH
Sistem kendali:
Pengontrol Logika yang Dapat Diprogram+Layar Sentuh+motor servo
Kontrol Suhu:
Kontrol Suhu PID
Memberi Makan dan Menerima:
Cakram karet dan cakram kertas sesuai standar EIA-481
Lebar pita:
12,16mm
Formulir Penyegelan:
Segel panas dan dingin
Tegangan Masukan:
AC220V/50Hz
Arus Maksimum:
10A
Ukuran mesin:
2030*528*583(L*L*T)
Berat bersih:
160kg
Konfigurasi selektif:
Sistem Deteksi Gambar
YS-12T-Automatic Tape and Reel Packaging Equipment
YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
