Rumah > Produk > Mesin depaneling PCB > UV Curing Oven Drying Oven

UV Curing Oven Drying Oven

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Nomor model: YS-U1

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik
Menyoroti:

UV curing oven for PCB

,

drying oven with UV curing

,

PCB depaneling UV oven

Berat:
350KG
Sistem kendali:
instrumen
Kecepatan Konveyor:
100~3000mm/menit
Kuantitas sinar UV:
1SET
Kekuatan sinar UV:
2Kw/set
Masa pakai lampu UV:
1000-1200 jam
Bahan Konveyor:
Teflon Mesh Belt
Lebar efektif:
50-450mm
Area Pendinginan:
Mandiri
Tipe Motor:
Impor
Penyesuaian kecepatan:
0-2000mm/menit
Tipe Reflektor:
Reflektor cahaya tinggi
Bahan rantai:
Baja Tahan Karat
Kontrol Lampu:
Kontrol terpisah
Tinggi lampu:
Dapat disesuaikan
Berat:
350KG
Sistem kendali:
instrumen
Kecepatan Konveyor:
100~3000mm/menit
Kuantitas sinar UV:
1SET
Kekuatan sinar UV:
2Kw/set
Masa pakai lampu UV:
1000-1200 jam
Bahan Konveyor:
Teflon Mesh Belt
Lebar efektif:
50-450mm
Area Pendinginan:
Mandiri
Tipe Motor:
Impor
Penyesuaian kecepatan:
0-2000mm/menit
Tipe Reflektor:
Reflektor cahaya tinggi
Bahan rantai:
Baja Tahan Karat
Kontrol Lampu:
Kontrol terpisah
Tinggi lampu:
Dapat disesuaikan
UV Curing Oven Drying Oven
UV Curing Oven Drying Oven
Product Overview

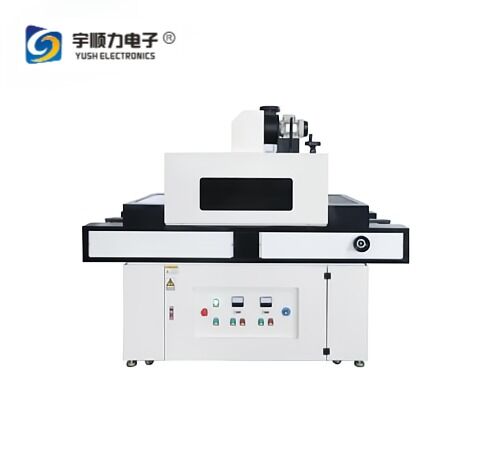

YUSH UV oven is a cost-effective drying solution designed for adhesive applications including glue, UV photosensitive materials, inks, and epoxy resin adhesives. This equipment enables instant surface curing and drying following injection or printing processes on various materials.
Key Features
  • Advanced control system with instrument or PLC+touch screen for stable operation
  • UV lamp lifetime of 1000-1200 hours with higher energy output and stronger coating penetration
  • Abnormal lamp protection device for enhanced safety
  • Teflon conveyor belt with stepless speed regulation for stable and adjustable operation
  • Focus design with imported high-light reflector lamp shade for instant drying
  • Independent cooling area ensures low output temperature for PCBs
  • Imported motor transmission system with smooth running and adjustable speed (0-2000mm/min)
  • Stainless steel chain transportation with adjustable effective width (50-450mm)
  • In/out board detection function for monitoring board count and transportation
  • Complete UV system with transformer, reflector, lamp tube, trigger, and UV reflective devices
  • Individual UV lamp group control with adjustable height settings
UV Curing Oven Drying Oven 0
Technical Specifications
Specifications YS-U1 YS-U2 YS-U3
Transport Teflon mesh belt Stainless steel chain Stainless steel chain
Control System Instrument PLC+touch screen PLC+touch screen
Conveyor Speed 100~3000mm/min 100~3000mm/min 100~3000mm/min
UV Light Quantity 1 set 2 sets 1 set (2 sets optional)
UV Light Power 2Kw/set 3Kw/set 6Kw/set
Weight Approx. 350KG Approx. 420KG Approx. 420KG
