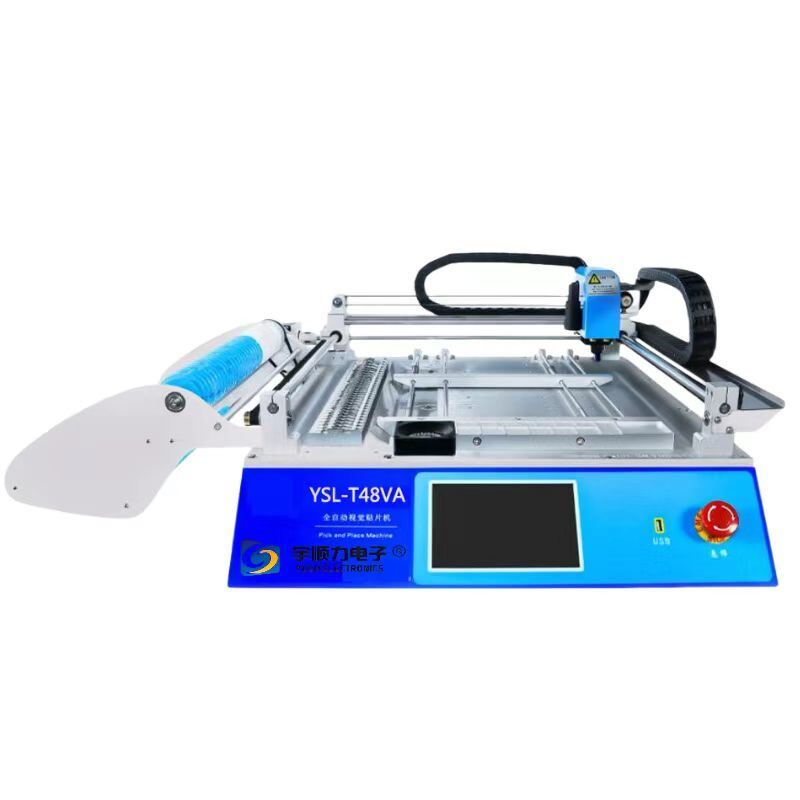

High Precision 2 Heads Desktop Vision Pick and Place Machine
This advanced desktop vision pick and place machine delivers exceptional precision for PCB assembly applications, featuring dual mounting heads and comprehensive vision calibration capabilities.
Key Features
- X, Y axis driven by stepping motor with closed loop control and inlet synchronous belt
- Dual visual calibration (CCD digital industrial camera) with Mark point calibration support
- Built-in computer with embedded Linux operating system and 7-inch touch screen
- 29 sets of tape feeder stack positions (8mm-22, 12mm-4, 16mm-2, 24mm-1)
- Supports minimum 0402 device, 0.5mm pin spacing chips, and 4mm height shaped elements
- 14 front IC bits with support for countertop custom IC tray and vibrating Fida
- Maximum PCB size: 345mm × 360mm
Technical Specifications
| Dimensions |
940mm (L) × 710mm (W) × 340mm (H) |
| Weight |
40kg |
| Power Supply |
AC220V (50Hz, single-phase) / AC110V (60Hz, single-phase); 300W |
| Air Supply |
No external power supply required |
| Vacuum Generation |
Built-in vacuum pump |
| Mounting Head Quantity |
Two |
| Mounting Speed |
4000 CPH (under optimal conditions) |
| Mounting Accuracy |
0.025mm |
| Component Type |
Resistance, capacitor exhaust resistance, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. |
| Component Range |
0402 to 22mm × 22mm components |
| PCB Thickness |
0.6mm ~ 3.5mm |
| PCB Size |
345mm (L) × 360mm (W) standard |
Packaging & Delivery
Manufacturer Profile
YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China, specializing in professional PCB separator and depanelizer electronic equipment machinery. The company features advanced production and processing equipment with an experienced development and manufacturing team, half of whom have over 10 years of experience in the electronic equipment industry.
Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, safety, and innovation, producing high-quality, stable performance, cost-effective products that improve production yields, increase productivity, and enhance customer market competitiveness.
YUSH offers various PCB separation types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router machines. Due to excellent quality and competitive pricing, our customers span worldwide markets, establishing YUSH as one of China's largest PCB separator production bases.
