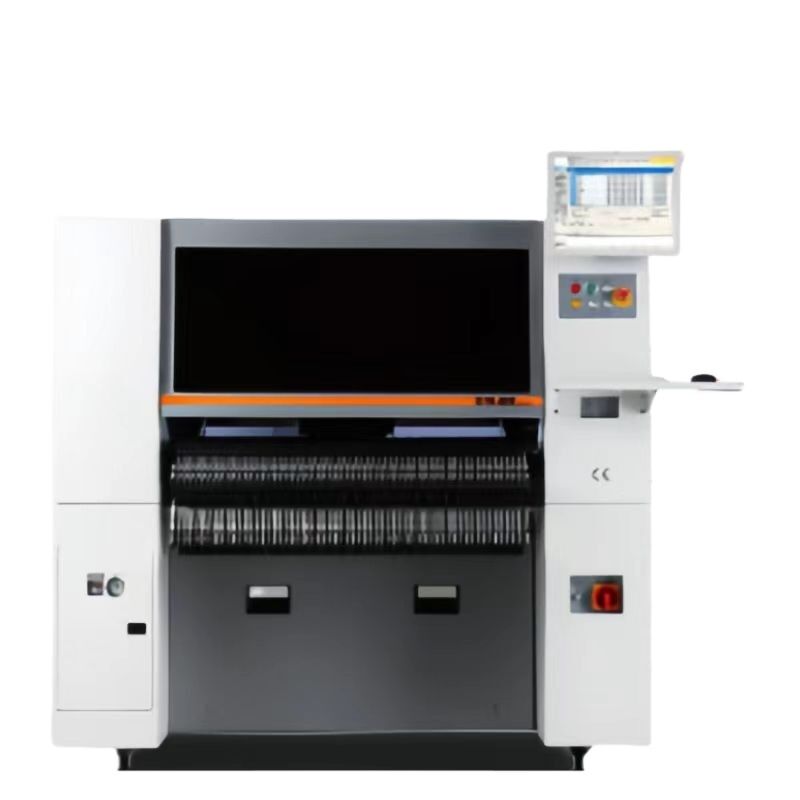

YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine

Name: YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-SM481 Ditambah
Price: 408.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YS-SM481 Ditambah

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $16,800 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT chip mounter machine, professional SMT mounter, PCB depaneling machine with warranty


Berat:	1300 kg	Spindel:	10 Spindel x2 Gantry
Kecepatan Penempatan:	78,000CPH (Optimal)	Akurasi Penempatan:	±40μm@μ±3
Bagian yang Berlaku:	0402 ~ 14mm(T 12mm)	Dimensi:	1650x1690x1458mm
Komponen inti:	Motor, Pompa	Model:	YS-SM481 Ditambah
PCB yang berlaku:	Maks. 460(L) x 400(W)(Standar), Maks. 1500(L) x 460(W)(Opsi)	Kecepatan Penempatan Optimal:	40.000CPH
Kisaran Suku Cadang yang Berlaku:	0402 ~ 42mm(T 15mm)	Model Dimensi:	1650×1680×1530mm
Opsi PCB Maks:	Maks. 1500(P) x 460(W)	PCB standar:	Maks. 460(P) x 400(L)
Kisaran Tinggi:	T 15mm

Berat:	1300 kg
Spindel:	10 Spindel x2 Gantry
Kecepatan Penempatan:	78,000CPH (Optimal)
Akurasi Penempatan:	±40μm@μ±3
Bagian yang Berlaku:	0402 ~ 14mm(T 12mm)
Dimensi:	1650x1690x1458mm
Komponen inti:	Motor, Pompa
Model:	YS-SM481 Ditambah
PCB yang berlaku:	Maks. 460(L) x 400(W)(Standar), Maks. 1500(L) x 460(W)(Opsi)
Kecepatan Penempatan Optimal:	40.000CPH
Kisaran Suku Cadang yang Berlaku:	0402 ~ 42mm(T 15mm)
Model Dimensi:	1650×1680×1530mm
Opsi PCB Maks:	Maks. 1500(P) x 460(W)
PCB standar:	Maks. 460(P) x 400(L)
Kisaran Tinggi:	T 15mm

YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine

The YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine delivers exceptional performance and reliability for surface mount technology applications. Engineered with precision and built for industrial durability.

Technical Specifications

Model	YS-SM471 Plus	YS-SM481 Plus	YS-SM482 Plus
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000 CPH (Optimum)	40,000 CPH (Optimum)	30,000 CPH (Optimum)
Placement Accuracy	±40μm @ μ±3σ	±40μm @ μ±3σ	±40μm @ μ±3σ
Applicable Parts	0402 ~ 14mm (H 12mm)	0402 ~ 42mm (H 15mm)	0402 ~ 55mm (H 15mm)
Applicable PCB	Max. 510(L) × 460(W) (Standard) Max. 610(L) × 460(W) (Option)	Max. 460(L) × 400(W) (Standard) Max. 1500(L) × 460(W) (Option)	Max. 460(L) × 400(W) (Standard) Max. 1200(L) × 510(W) (Option)
Dimension (mm)	1650 × 1690 × 1458	1650 × 1680 × 1530	1650 × 1680 × 1458

About YUSH Electronic Technology

YUSH Electronic Technology Co., Ltd was founded in 2005 and is strategically located in Jiangsu, China's world-renowned manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery.

YUSH Electronic Technology maintains advanced production and processing equipment supported by an experienced development and manufacturing team. Over half of our technical staff possess more than 10 years of experience in the electronic equipment industry.

Since 2004, our leadership has focused on developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, operational safety, and continuous innovation, resulting in numerous high-quality, stable-performance, and cost-effective products that improve production yields and enhance customer competitiveness.

Our comprehensive product line includes various PCB separation solutions featuring manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router technologies. Our commitment to quality and competitive pricing has established a global customer base, positioning YUSH as one of China's leading PCB separator production facilities.
