Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT solder paste stencil printer, semi-auto screen printer PCB, stencil printer for SMT


Berat:	300kg	Kekuatan:	10 kw
Voltase:	220v, 110v	Nomor model:	YS-L600
Ukuran:	8507201650mm	Ukuran Platform:	350×400mm
ukuran PCB:	320x400mm	Ukuran templat:	550×680mm
Kecepatan Pencetakan:	0-8000mm/mnt	Ketebalan PCB:	0-2.0mm
Penyempurnaan PCB:	Depan/samping±10mm	Tinggi Platform:	850±20mm
Presisi Pengulangan:	±0,02mm	Modus Pemosisian:	Lubang Luar/Referensi
Catu daya:	1PAC220V 50/60HZ

Berat:	300kg
Kekuatan:	10 kw
Voltase:	220v, 110v
Nomor model:	YS-L600
Ukuran:	8507201650mm
Ukuran Platform:	350×400mm
ukuran PCB:	320x400mm
Ukuran templat:	550×680mm
Kecepatan Pencetakan:	0-8000mm/mnt
Ketebalan PCB:	0-2.0mm
Penyempurnaan PCB:	Depan/samping±10mm
Tinggi Platform:	850±20mm
Presisi Pengulangan:	±0,02mm
Modus Pemosisian:	Lubang Luar/Referensi
Catu daya:	1PAC220V 50/60HZ

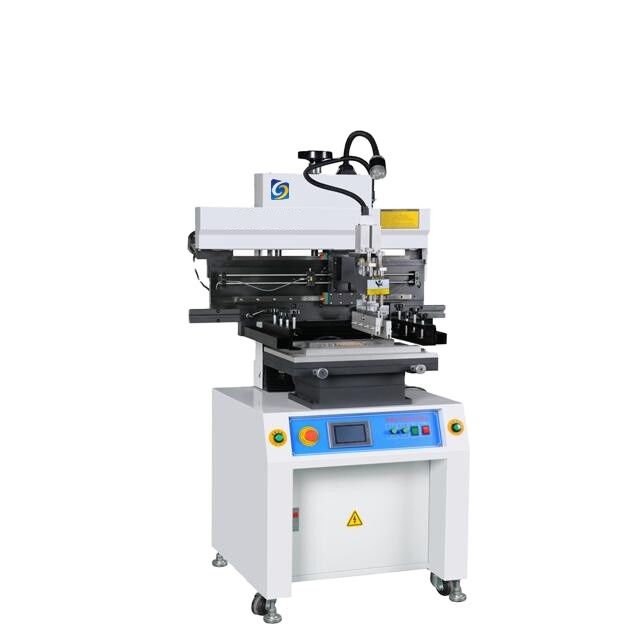

Semi-auto SMT solder paste printer /Screen printer / Stencil Printer

Semi-Automatic SMT Solder Paste Printer / Screen Printer / Stencil Printer

Key Features

Precision guide rail and imported motor drive for blade seat conversion with high accuracy
45-degree rotating printing scraper for easy stencil and squeegee cleaning and replacement
Adjustable blade positioning for optimal printing placement
Fixed groove printing platen with PIN system for easy single and double-sided printing
Movable steel mesh with X, Y, Z fine adjustment capabilities
Multiple printing methods including one-way and two-way operation
Automatic counting function for production output statistics
Adjustable blade angle compatible with both steel blades and rubber scrapers
Touch screen with adjustable screen saver function to extend display life
Adjustable printing speed with real-time display

Technical Specifications

Model	YS-L600
Dimensions	850×8720×1650mm
Platform Size	350×400mm
PCB Size	320×400mm
Template Size	550×680mm
Printing Speed	0-8000mm/min
PCB Thickness	0-2.0mm
PCB Fine Tuning Range	Front/side ±10mm
Power Supply	1PAC220V 50/60HZ
Platform Height	850±20mm
Repeatability Precision	±0.02mm
Positioning Mode	Outside/Reference Hole
Weight	Approx. 300Kg
