SMT Automatic Solder Paste Printer/electronic Product Machinery

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $12,000-18,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT solder paste printer, automatic PCB depaneling machine, electronic product manufacturing machinery


Berat:	320kg	Kekuatan:	10 kw
Voltase:	220V/110V	Nomor model:	YS-G5
ukuran PCB:	5050-400340mm	Ketinggian Transportasi:	900±40mm
Kecepatan transportasi:	1500mm/dtk	Kecepatan cetak:	6-200mm/detik
CCD FOV:	8*6mm	Ukuran Bingkai Layar:	370370mm-737737mm
Ketebalan Bingkai Layar:	20-40mm	Ketebalan PCB:	0.4-6mm
Ulangi akurasi posisi:	±0,01mm	Akurasi Pencetakan:	±0,025mm
Dimensi Mesin:	114013641404mm

Berat:	320kg
Kekuatan:	10 kw
Voltase:	220V/110V
Nomor model:	YS-G5
ukuran PCB:	5050-400340mm
Ketinggian Transportasi:	900±40mm
Kecepatan transportasi:	1500mm/dtk
Kecepatan cetak:	6-200mm/detik
CCD FOV:	8*6mm
Ukuran Bingkai Layar:	370370mm-737737mm
Ketebalan Bingkai Layar:	20-40mm
Ketebalan PCB:	0.4-6mm
Ulangi akurasi posisi:	±0,01mm
Akurasi Pencetakan:	±0,025mm
Dimensi Mesin:	114013641404mm

SMT Automatic Solder Paste Printer/electronic Product Machinery

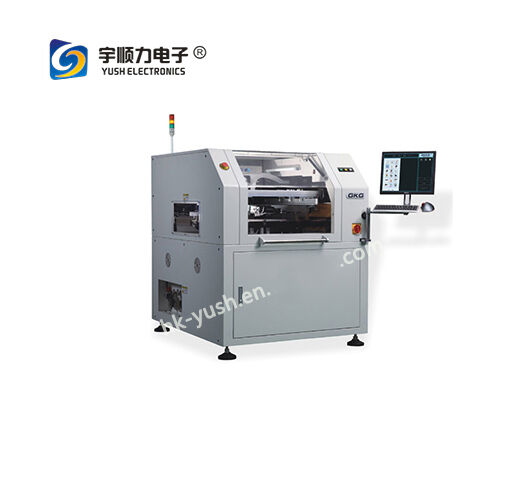

YS-G5 Automatic Solder Paste Printer

Professional SMT PCB printing machinery for electronic manufacturing applications

Product Specifications

Place of Origin: Guangdong, China

Condition: Original New

Usage: SMT PCB Printer

Parameter	Specification
PCB Size	50×50 - 400×340mm
PCB Thickness	0.4-6mm
PCB Warpage	Max. PCB diagonal 1%
Transport Height	900±40mm
Transport Speed	1500mm/s (Max), Program Control
Print Speed	6-200mm/sec
Repeat Position Accuracy	±0.01mm
Printing Accuracy	±0.025mm
Cycle Time	<8sec
Product Changeover	Old Process: <3mins, New Process setup: <5mins
Air Supply	4-6kgf/cm²
Power Supply	AC:220±10%, 50/60HZ, 2.5KW
Control Method	PC Control
Operating System	Windows XP/Win7
Machine Dimensions	1140(L)×1364(W)×1404(H)mm
Weight	Approx. 1000KG

Advanced Features

GKG Special Adjustment Jacking Platform

High-Performance Image and Optical System

Utilizes uniform ring light and high brightness coaxial light with programmable brightness adjustment. Capable of recognizing all types of Mark points including rugged surfaces. Suitable for tin plating, coppering, gold plating, FPC, and various PCB colors.
