Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB solder paste printer, semi-automatic PCB printer, PCB depaneling solder printer


Berat:	300kg	Kekuatan:	10 kw
Voltase:	220v, 110v	Kekuatan kotor:	2kw
Ukuran Max PCB:	1200*300mm	Akurasi Pencetakan:	± 0,02 mm
Ketebalan PCB:	0,2-2,0mm	Catu daya:	Tegangan 220V, 50/60Hz
Ukuran Meja Kerja:	1280X300mm	Ukuran bingkai maks:	1300X320mm
Ukuran Cetak Maks:	1200x300mm	Ukuran stensil maksimal:	1260mm*430mm
Rentang penyesuaian mikro:	±10mm	Akurasi pengulangan mesin:	±0,02mm
Tekanan udara:	0,4-0,6Mpa

Berat:	300kg
Kekuatan:	10 kw
Voltase:	220v, 110v
Kekuatan kotor:	2kw
Ukuran Max PCB:	1200*300mm
Akurasi Pencetakan:	± 0,02 mm
Ketebalan PCB:	0,2-2,0mm
Catu daya:	Tegangan 220V, 50/60Hz
Ukuran Meja Kerja:	1280X300mm
Ukuran bingkai maks:	1300X320mm
Ukuran Cetak Maks:	1200x300mm
Ukuran stensil maksimal:	1260mm*430mm
Rentang penyesuaian mikro:	±10mm
Akurasi pengulangan mesin:	±0,02mm
Tekanan udara:	0,4-0,6Mpa

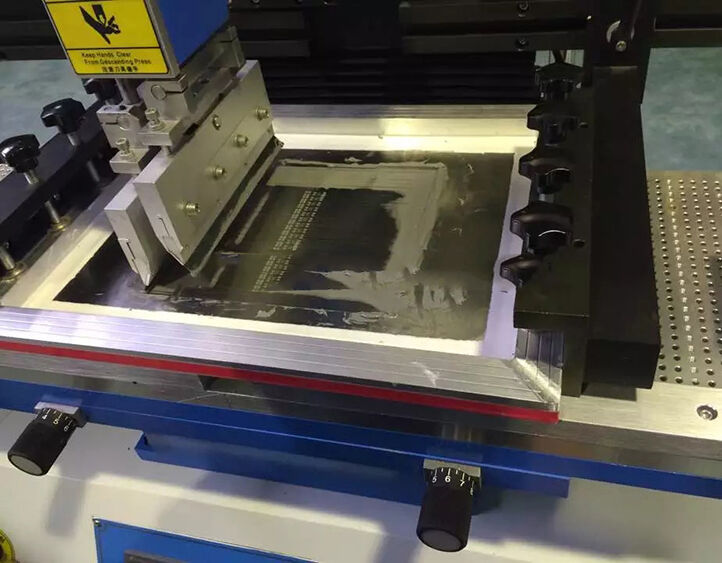

Semi-Automatic SMT PCB Solder Paste Printer

High-precision semi-automatic solder paste printing solution for SMT PCB assembly, designed for reliable performance in manufacturing environments.

Technical Specifications

Working table size (X,Y direction)	1280 × 300 mm
Maximum frame size (X,Y direction)	1300 × 320 mm
Maximum print size of PCB board (X,Y direction)	1200 × 300 mm
Maximum PCB stencil sizes	1260 mm × 430 mm
PCB thickness range	0 - 100.0 mm
Positioning method	PCB outer or pin holes positioning
Micro-adjustment range (X, Y)	Front/back ±10 mm, Right/left ±10 mm
Printing accuracy	±0.01 mm
Machine repeatability accuracy	±0.02 mm
Minimum internal clearance	0.35 mm
Air pressure requirement	0.4 - 0.6 MPa / 4 - 6 kgf/cm²
Power supply	Single phase 220V, 50/60 Hz, 100W
Dimensions	1600 mm × 900 mm × 1650 mm
Weight	Approximately 300 kg
