Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                V groove PCB separator machine, YSV-1A depaneling tool, PCB depanelizer with warranty


Berat:	55kg	Kekuatan:	10 kw
Voltase:	110/220 v	Minimalkan Kecepatan:	100/200/300/500 mm/dtk
Nomor Polandia:	1	Jenis:	Udara
Ukuran:	780 x 460 x 560 mm	Ketebalan:	0.6-3.5mm
Model:	YSV-1A	Panjang:	460 atau 600mm
Kecepatan:	100/200/300/500 mm/dtk	Catu daya:	110/220V
Ukuran mesin:	770510450mm	Komponen inti:	bilah
Jarak Bebas yang Dapat Disesuaikan:	Ya

Berat:	55kg
Kekuatan:	10 kw
Voltase:	110/220 v
Minimalkan Kecepatan:	100/200/300/500 mm/dtk
Nomor Polandia:	1
Jenis:	Udara
Ukuran:	780 x 460 x 560 mm
Ketebalan:	0.6-3.5mm
Model:	YSV-1A
Panjang:	460 atau 600mm
Kecepatan:	100/200/300/500 mm/dtk
Catu daya:	110/220V
Ukuran mesin:	770510450mm
Komponen inti:	bilah
Jarak Bebas yang Dapat Disesuaikan:	Ya

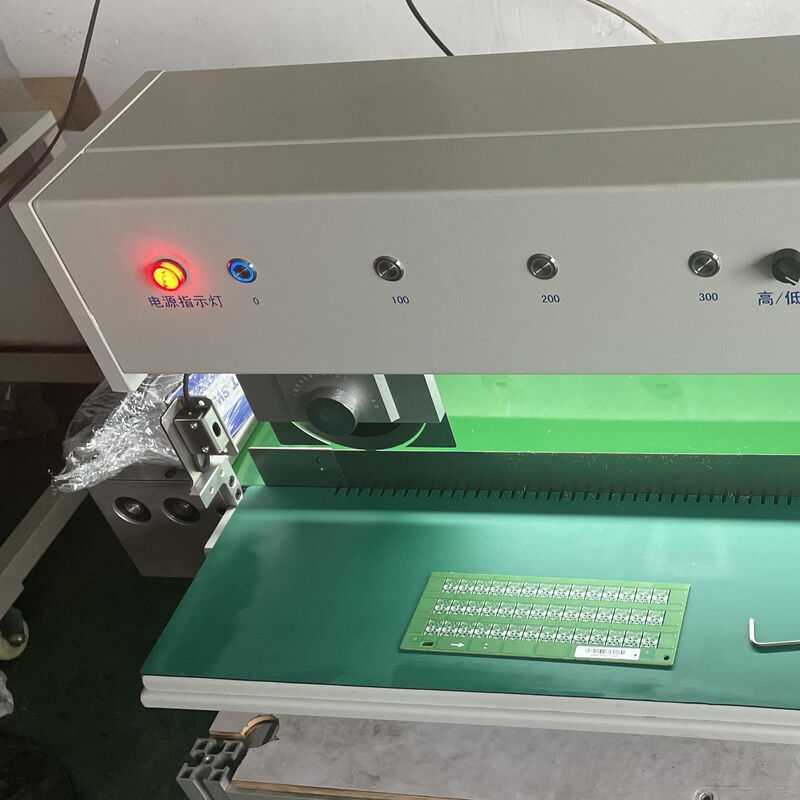

V Groove Separator Machine PCB Depanelizer Tool -YSV-1A

V-Groove Separator Machine PCB Depanelizer Tool - YSV-1A

Product Specifications

Model	YSV-1A
Length (mm)	460 or 600
Speed (mm/s)	100/200/300/500
Thickness (mm)	0.6-3.5
Power Supply (V)	110/220
Size (mm)	770×510×450
Weight	55kg

Key Features

Separate pre-scored PCB assembly without stress on either PCB or components
One-touch programming of cut length with digital display
Separating speed adjusted by rotary knob
Handles intermittent scoring or cut-outs
Precisely cuts boards with projected components
Large stainless steel platform on both sides of cutting blade prevents board wobble
Table height and angle are adjustable
Optional PCB conveyor belt to remove finished boards
Adjustable clearance between circular and linear blades to fit different groove depths
Compensates for blade wear over time
