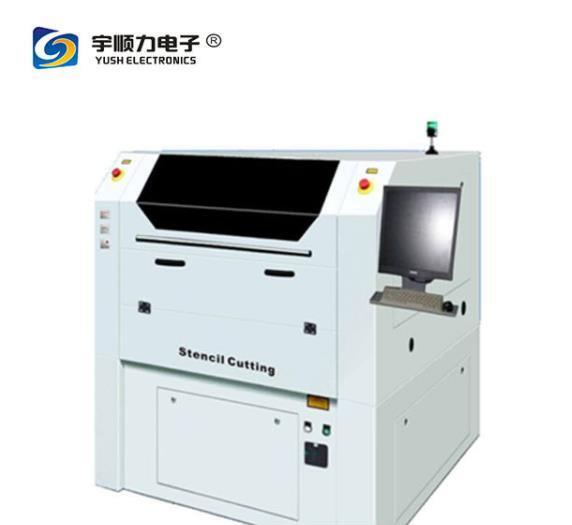

Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter

Name: Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-GW50
Price: 75.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YS-GW50

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $50,000-100,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fiber laser sheet metal cutter, 1mm thick SMT stencil laser, PCB depaneling laser cutting machine


Berat:	2600 kg	kekuatan laser:	100W
Panjang Gelombang Laser:	3mm	Tegangan kerja:	220V
Ukuran Penjepit:	650mm*720mm	Ketebalan pemotongan:	1mm
Akurasi Posisi:	±2μ	Akurasi penentuan posisi berulang:	±2μ
Ukuran mesin:	1640mm1380mm1500mm	Kecepatan platform:	≤300mm/S
Variabilitas deteksi lokasi:	0.1μm	Rentang Pemotongan:	X 600mm * Y 600MM
ukuran meja:	X 620mm * Y 620MM	Diameter fokus:	25-30μm
Efektivitas Pemotongan Terbaik:	Hingga 9400 Apertur Sintetis / jam

Berat:	2600 kg
kekuatan laser:	100W
Panjang Gelombang Laser:	3mm
Tegangan kerja:	220V
Ukuran Penjepit:	650mm*720mm
Ketebalan pemotongan:	1mm
Akurasi Posisi:	±2μ
Akurasi penentuan posisi berulang:	±2μ
Ukuran mesin:	1640mm1380mm1500mm
Kecepatan platform:	≤300mm/S
Variabilitas deteksi lokasi:	0.1μm
Rentang Pemotongan:	X 600mm * Y 600MM
ukuran meja:	X 620mm * Y 620MM
Diameter fokus:	25-30μm
Efektivitas Pemotongan Terbaik:	Hingga 9400 Apertur Sintetis / jam

Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter

Fiber Laser Sheet Metal Cutting Machine - 1mm Thick SMT Stencil Laser Cutter

The YS-GW50 is a semiconductor-pumped solid-state high-power fiber laser cutting machine featuring advanced technology. This system significantly increases cutting efficiency while expanding the range of machinable products. It handles both ordinary metal sheets and precision parts with consistent thickness requirements.

Technical Specifications

Platform Positioning Accuracy	±3μm
Platform Repeatability	±1.5μm
Platform Velocity	≤300mm/S
Location Detection Sub Variability	0.1μm
Cutting Range	X 600mm × Y 600mm
Table Size	X 620mm × Y 620mm
Cutting Thickness	≤0.5mm (reference value)
Focus Diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 Synthetic Aperture/hr, 13000-14000 standard aperture/hour (with 0.3mm diameter standard round date, scope is 0.15mm less steel)

Configuration Specifications

Laser Light Source Specifications

Laser Power	50W
Wavelength	1070mm

Beam Delivery System

Dust-proof

Dust Cover

Control and Drive Systems

Control	PC-BASE CNC AC Servo Control
Drive	Linear motor drive
Guide	Precision linear guide rails

Additional Features

CCD Module	CCD fill holes focus, coaxial CCD light function
Dust Collection	Collect waste and zero-emission
Blowing System	Coaxial blow assist gas
Fixture	Pneumatic clamping

Software System

Software System	YUSH Mark
Language	Chinese/English
Application Environment	Windows XP
File Format	DXF, CNC
Implementation Monitoring	Cutting time, cutting the number of holes, the auxiliary gas, cutting state

Software Features

CNC support directly open documents, DXF file, Gerber file and drawing were selected, rotate, mirror and other operations
Support the establishment of different cutting parameters for different databases steel thickness steel
Support for documents path optimization
Supports automatic cutting member cutting case records to the query
