Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine YSVJ-650, PCB separator depaneling machine, YSVJ-650 PCB depaneling equipment


Berat:	350Kg	Voltase:	220V
Kekuatan:	110V/220V AC 60HZ/50HZ	Ukuran:	L1300W400H1000mm
Ketebalan PCB:	0.8-3.0mm	Kecepatan Pemotongan:	Dapat disesuaikan
Bahan Pisau:	Skh51 Baja Kecepatan Tinggi	Penyesuaian pemotong atas:	800rpm
Kisaran lebar papan:	15-20mm	Papan yang berlaku:	Panel LED, papan serat, papan aluminium (>400mm)
Komponen inti:	PLC, Gearbox, Motor, Pompa	Proses Pemotongan:	Tak terbatas
Ban berjalan:	Termasuk	Banyak pemotong:	Ya
Tampilan Layar:	Tampilan celah

Berat:	350Kg
Voltase:	220V
Kekuatan:	110V/220V AC 60HZ/50HZ
Ukuran:	L1300W400H1000mm
Ketebalan PCB:	0.8-3.0mm
Kecepatan Pemotongan:	Dapat disesuaikan
Bahan Pisau:	Skh51 Baja Kecepatan Tinggi
Penyesuaian pemotong atas:	800rpm
Kisaran lebar papan:	15-20mm
Papan yang berlaku:	Panel LED, papan serat, papan aluminium (>400mm)
Komponen inti:	PLC, Gearbox, Motor, Pompa
Proses Pemotongan:	Tak terbatas
Ban berjalan:	Termasuk
Banyak pemotong:	Ya
Tampilan Layar:	Tampilan celah

Pcb Deapneling Machine-YSVJ-650/PCB Separator

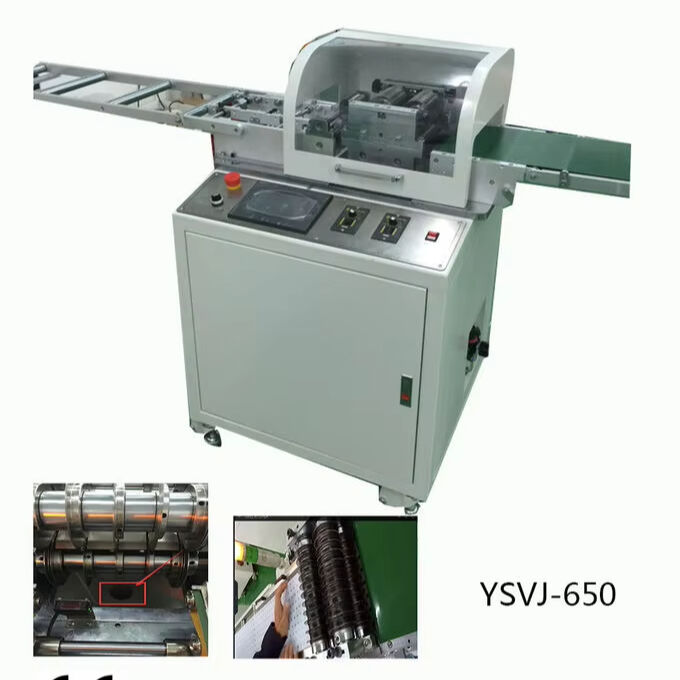

PCB Depaneling Machine YSVJ-650 / PCB Separator

YSVJ-650 PCB Singulation Machine - Advanced PCB separation solution for efficient panel processing

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and maintenance
Computer screen control with production counting and preset capabilities
Direct display of cutting tool gap measurements on screen
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous processing of several boards
Top cutter wheel adjustable range: 0-5mm
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by turn-knob adjustment
Integrated conveyor belt for direct output, enabling seamless docking with downstream equipment
Capable of cutting LED panels, fiberboards, aluminum boards (over 400mm) and special boards
Multi-knife operation for simple, efficient mass production

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited cutting capacity
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (over 400mm), special boards
