Automotive LED Bulbs PCB Separator Machine YSVC-2

Name: Automotive LED Bulbs PCB Separator Machine YSVC-2
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-2
Price: 10 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YSVC-2

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automotive LED bulbs PCB separator, YSVC-2 PCB depaneling machine, LED PCB separator with warranty


Berat:	189kg	Ketebalan pemotongan:	0.3-3.5mm
Panjang Maks:	330mm	Tekanan Udara Kerja:	0.5-0.7MPA
Voltase:	220V/110V	Dimensi:	720mm(P)300mm(L)440mm(T)
Ketebalan PCB:	0,50 ~ 3,5mm	Tinggi Komponen:	Paket Netral atau sebagai permintaan pelanggan
Jarak Minimal:	0,5 mm	Ukuran mesin:	620230400mm
Catu daya:	220VAC / 110V	Panjang Papan Maks:	300mm / 400mm
Tinggi pisau lebih rendah:	Dapat disesuaikan	Penyesuaian Gap:	Kenop yang dapat disesuaikan
Tipe Penggerak:	Pneumatik

Berat:	189kg
Ketebalan pemotongan:	0.3-3.5mm
Panjang Maks:	330mm
Tekanan Udara Kerja:	0.5-0.7MPA
Voltase:	220V/110V
Dimensi:	720mm(P)300mm(L)440mm(T)
Ketebalan PCB:	0,50 ~ 3,5mm
Tinggi Komponen:	Paket Netral atau sebagai permintaan pelanggan
Jarak Minimal:	0,5 mm
Ukuran mesin:	620230400mm
Catu daya:	220VAC / 110V
Panjang Papan Maks:	300mm / 400mm
Tinggi pisau lebih rendah:	Dapat disesuaikan
Penyesuaian Gap:	Kenop yang dapat disesuaikan
Tipe Penggerak:	Pneumatik

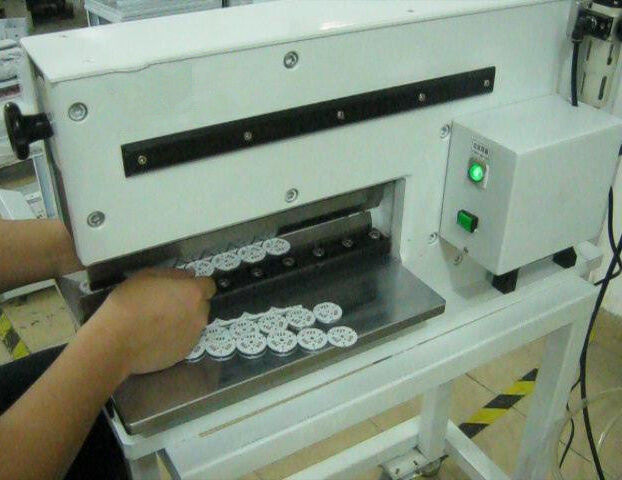

Automotive LED Bulbs PCB Separator Machine YSVC-2

YSVC-330 and YSVC-220 PCB Separator Machines provide efficient and precise separation of printed circuit boards with advanced pneumatic technology.

Key Advantages

Easy maintenance and operation
Thin PCBs down to 0.3mm can be sheared safely
Shearing process without vibrations due to pneumatic drive unit

YSVC-2 Technical Specifications

Maximum Length	330mm (Custom sizes available)
Cutting Thickness	0.3-3.5mm
Voltage and Power	110V/220V
Working Air Pressure	0.5-0.7Mpa
Speed	Depends on operator skill level
Size	620×230×400mm
Weight	165kg

YSVC-2 Advanced Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process through pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and capacitors
Foot pedal operation for precise control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and components
Easy PCB gap adjustment via front knob

All-Purpose PCB Separator Machine

Straight Knife PCB separator machine features pneumatic drive and electric control. Designed to separate pre-scored panel boards carefully without bending or tension stress. Even sensitive SMD-components like ceramic capacitors remain undamaged during separation. Special knife design allows safe separation of boards with high components placed close to edges. Wedge-shaped knives cut panels within the groove, enabling safe separation of boards less than 1mm thickness without creating stress.

YSVC-2 Performance Features

No vibration during process prevents damage to precise PCBs
Easy board gap adjustment via top knob with low friction design
Adjustable lower knife height with separate front/rear adjustment
Operation and maintenance suitable for unskilled personnel

PCB Separator Machine Specifications

Maximum Board Length	300mm / 400mm
Package Size	720mm(L)×300mm(W)×440mm(H)
Thickness Range	0.50-3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4-0.6Mpa
Weight	189 kg
Application Scope	All V-CUT SMD PCB boards
