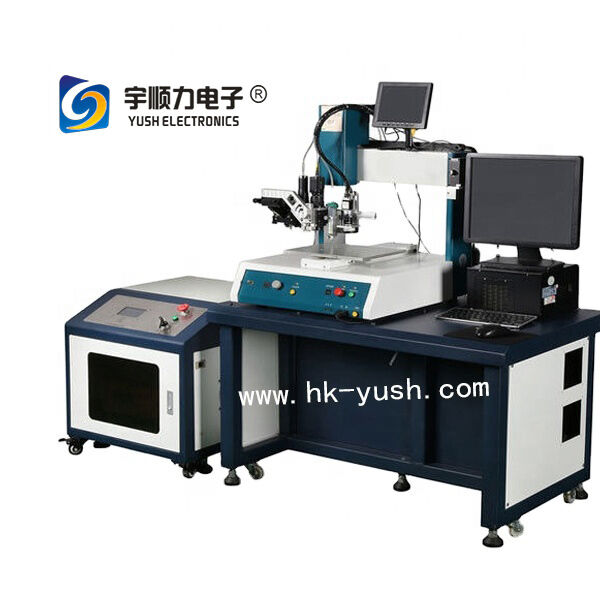

Laser Welding Machine - Board Soldering of Special Components Device
Professional laser welding system designed for precision board soldering of special components with integrated visual positioning and automated functionality.
Technical Specifications
| Laser wavelength |
808±8nm |
| Fiber terminal output power |
30±6W |
| Fiber diameter |
400um / 600um |
| Fiber Optic Connector |
YS-905 |
| Numerical aperture |
0.22 |
| Rated power |
500VA |
| Indication laser |
635±6nm, 5mw |
| AC power supply |
AC 220V±10%50HZ, 15A |
| Ambient temperature |
10-35 °C |
| Relative humidity |
≤80%RH |
| Atmospheric pressure |
≤86-106Kpa |
| Environmental cleanliness air dust |
≤0.01g/m³ |
Key Features
- Professionally designed welding system compatible with visual positioning CCD
- Integrated solder paste and laser functions for comprehensive laser and solder paste integration
- Advanced visual positioning CCD with professional algorithm for complete and accurate positioning
- Touch screen control with adjustable waveforms suitable for precision welding applications
- Laser power supply with current feedback control for stable output laser energy
- High-quality imported laser from the United States
- Single mode fiber output with excellent beam quality
- 20x CCD display for clear monitoring of the welding process
- Fully automatic operation with automated loading and unloading for unmanned operation
Applications
High-density interconnect chips, ICs, chip components, connectors, headphone plugs, cell phone speakers, energy-saving lamps, FPC flexible circuit boards, cell phone cameras, and special components for board soldering.
