Small Size Engraving and Machine for Pcb Cutting -YSVC-650

Rincian Produk

Tempat asal: Cina

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $28,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                small PCB depaneling machine, engraving machine for PCB cutting, YSVC-650 PCB cutting machine


Berat:	3500 kg	Kekuatan:	10 kw
Voltase:	220V/380V	Y Kecepatan potong:	0 ~ 100mm/s
Kecepatan spindel:	50000RPM	Tekanan udara:	4kg/cm2
Dimensi tuan rumah:	700mm * 900mm * 1200mm	Ketepatan:	± 0,01mm
Stroke sumbu Z:	50mm	Akurasi pemotongan:	± 0,1 mm
Konsumsi Daya:	2kVA	Tegangan Kolektor Debu:	380V 1,5P
Dimensi pengumpul debu:	680mm * 400mm * 900mm	Ukuran Maksimum PCB:	450mm * 500mm
penggerak XYZ:	MOTOR SERVO AC

Berat:	3500 kg
Kekuatan:	10 kw
Voltase:	220V/380V
Y Kecepatan potong:	0 ~ 100mm/s
Kecepatan spindel:	50000RPM
Tekanan udara:	4kg/cm2
Dimensi tuan rumah:	700mm * 900mm * 1200mm
Ketepatan:	± 0,01mm
Stroke sumbu Z:	50mm
Akurasi pemotongan:	± 0,1 mm
Konsumsi Daya:	2kVA
Tegangan Kolektor Debu:	380V 1,5P
Dimensi pengumpul debu:	680mm * 400mm * 900mm
Ukuran Maksimum PCB:	450mm * 500mm
penggerak XYZ:	MOTOR SERVO AC

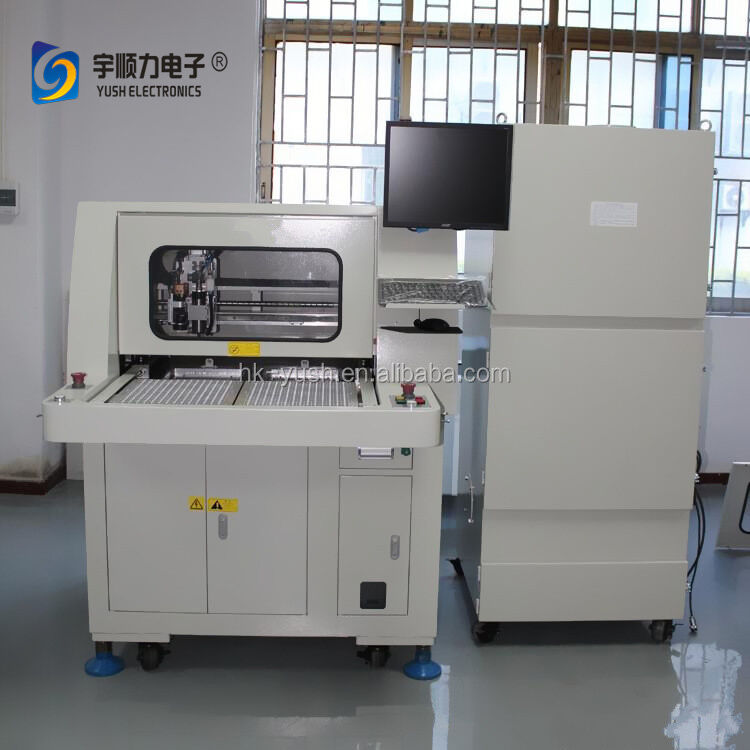

Small Size Engraving and Machine for Pcb Cutting -YSVC-650

Small Size Engraving and Machine for PCB Cutting - YSVC-650

Product Overview

The YSVC-650 PCB cutting machine is designed for precision depaneling of printed circuit boards. This automated gong knife scoring system eliminates common production issues while maintaining high accuracy and efficiency.

Key Benefits

Prevents artificial tin cracks and component damage during separation
Eliminates stress problems caused by mechanical force generation
Suitable for various housing types and irregular PCB board shapes (straight lines, arcs, L-types, etc.)
X, Y, Z-axis integration with high-speed 60,000 rpm spindle motor

Machine Features

Designed for puzzle and semi-finished product division
High cutting speed with exceptional precision
Simple operation and user-friendly interface
Quick tool change capability with minimal setup adjustment
High-intensity dust collection system maintains PCB and surface cleanliness
Minimal stress cutting mode for optimal board integrity

Technical Specifications

Cutting Speed	0 - 100mm/s
Machine Accuracy	± 0.01mm
Z-axis Stroke	50mm
Control System	X, Y, Z control or industrial PC with touch screen
Drive System	AC servo motor for X, Y, Z axes
Cutting Accuracy	± 0.1mm
Spindle Speed	MAX 50,000 rpm
Host Voltage	220V 50/60Hz
Air Pressure	4kg/cm² or higher
Power Consumption	2KVA
Dust Collection	Integrated dust collection system
Dust Collector Voltage	380V 1.5P
Host Dimensions	700mm × 900mm × 1200mm
Dust Collector Dimensions	680mm × 400mm × 900mm

Optional Features

CCD vision system for enhanced precision
Comprehensive dust collection (above and below)
Multiple PCB board size compatibility: 280mm × 340mm, 300mm × 400mm, 450mm × 500mm
Touch screen and hand-knitted or PC operation options
