Name: Two-slide Separator for PCB Board Cutting-YSVC-650
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 9 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YSVC-650

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $9,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine two-slide separator, YSVC-650 PCB board cutter, PCB separator with warranty


Berat:	600 kg	Ukuran:	1220mm * 1450mm * 1420mm
Tinggi offset:	60~110mm	ukuran PCB:	322mm * 322mm
Ketebalan PCB:	5mm	Kecepatan spindel:	50000rpm/menit
Kecepatan Pemotongan:	100 mm / dtk	Kecepatan mengemudi:	3000mm / dtk
Pemotongan Presisi:	0,01mm	Presisi sumbu:	0,001mm
Kekuatan:	2.2KW AC380V	Tekanan udara:	2 ~ 5KG / cm2
Tenaga motorik:	400W	kekuatan vakum:	2.2KWAC 380V
Wilayah kerja:	680mm * 360mm * 50mm

Berat:	600 kg
Ukuran:	1220mm * 1450mm * 1420mm
Tinggi offset:	60~110mm
ukuran PCB:	322mm * 322mm
Ketebalan PCB:	5mm
Kecepatan spindel:	50000rpm/menit
Kecepatan Pemotongan:	100 mm / dtk
Kecepatan mengemudi:	3000mm / dtk
Pemotongan Presisi:	0,01mm
Presisi sumbu:	0,001mm
Kekuatan:	2.2KW AC380V
Tekanan udara:	2 ~ 5KG / cm2
Tenaga motorik:	400W
kekuatan vakum:	2.2KWAC 380V
Wilayah kerja:	680mm * 360mm * 50mm

Two-slide Separator for PCB Board Cutting-YSVC-650

Two-slide Separator for PCB Board Cutting - YSVC-650

Professional two-slide separator designed for precision PCB board cutting and depaneling applications.

Machine Specifications

Physical Dimensions

Dimensions (W × D × H): 1220mm × 1450mm × 1420mm

Height Offset: 60-110mm

Manipulator System

Motor Type: JiaBao series

Positioning Repeatability: 0.001mm

Axis Working Area (Max): 680mm × 360mm × 50mm

Work Station

PCB Fixation: Standard, specialization

PCB Loading/Unloading: Manual

PCB Size (Max): 322mm × 322mm

PCB Thickness (Max): 5mm

Fixturing System

Rigidity Fixturing: Standard

Fixturing Fixation: Mechanical

Spindle Motor

Power: 400W

Spindle Speed: 50,000 rpm/min

Protection: Self / Wind cooling

Cutter Change: Specialization

Routing Capability

Cutting Speed (Max): 100mm/s

Driving Speed (Max): 3000mm/s

Cutting Precision: 0.01mm

Vacuum System

Vacuum Power: 2.2KW AC 380V

Vacuum Plumb: Standard

Utilities

Power: 2.2KW AC380V

Air Supply Pressure: 2-5 KG/cm²

Programming & Control Features

Program Editing

Inline program editing
Function edit: Line, arc, circular, U-curve
Program storage: HDD

Vision & Automation

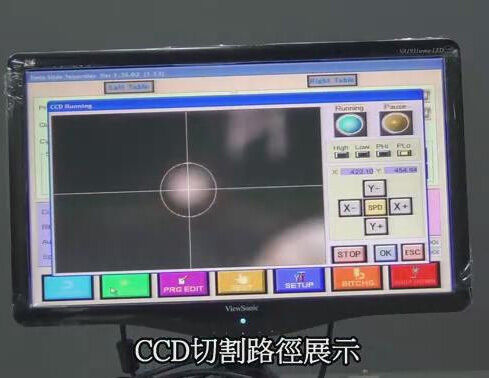

SONE color CCD vision system
Automatic milling cutter offset
Automatic vacuum setup

Operation Monitoring

Machine state indicator
Automatic tool life detection and usage time testing
Motor protection: Overheating, overload, low voltage protection
Motor overload checking: Overload, line normal, low voltage protection
Automatic tool usable time detection
Data statistics: Separate board model, separating count, diverse counting methods
Error recording: Software automatically records all alarms and machine memory

Accuracy Specifications

Axis Precision: 0.001mm

Cutting Precision: 0.1mm

Safety Features
