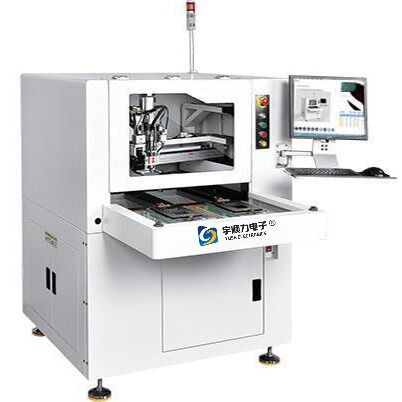

Full Automatic PCB Board Router Machine for PCB Assembly Line

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $16,000-25,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                full automatic PCB depaneling machine, PCB board router for assembly line, automatic PCB depaneling machine with warranty


Berat:	900 kg	Ukuran kerja:	350mm X 450mm
Ukuran meja kerja ganda:	700mm X 450mm	Kecepatan Servo XY:	0-1000mm/detik
Kecepatan Servo Z:	0-800mm/detik	Akurasi XY:	±0,01mm
Akurasi pemotongan:	±0,02mm	Akurasi Kalibrasi CCD:	±0,01mm
Stres Lempeng:	300uε di bawah	Kecepatan spindel:	60.000 rpm
Diameter alat:	0,8-2,3mm	Ketebalan PCB:	0.2mm-6.0mm
Kekuatan pengumpul debu:	3HP (opsi 5HP)	Ukuran pengumpul debu:	640mm×785mm×1760mm
Ukuran mesin:	1220mm×1430mm×1520mm

Berat:	900 kg
Ukuran kerja:	350mm X 450mm
Ukuran meja kerja ganda:	700mm X 450mm
Kecepatan Servo XY:	0-1000mm/detik
Kecepatan Servo Z:	0-800mm/detik
Akurasi XY:	±0,01mm
Akurasi pemotongan:	±0,02mm
Akurasi Kalibrasi CCD:	±0,01mm
Stres Lempeng:	300uε di bawah
Kecepatan spindel:	60.000 rpm
Diameter alat:	0,8-2,3mm
Ketebalan PCB:	0.2mm-6.0mm
Kekuatan pengumpul debu:	3HP (opsi 5HP)
Ukuran pengumpul debu:	640mm×785mm×1760mm
Ukuran mesin:	1220mm×1430mm×1520mm

Full Automatic PCB Board Router Machine for PCB Assembly Line

High-precision automated PCB depaneling solution designed for efficient PCB assembly line integration with dual workbench capability.

Technical Specifications

Single side working size	350mm × 450mm
Double workbenches size	700mm × 450mm
X-Y AC Servo speed	0-1000mm/sec
Z AC Servo speed	0-800mm/sec
X-Y repetition accuracy	±0.01mm
Cutting accuracy	±0.02mm
CCD camera calibration accuracy	±0.01mm
Plate stress value	300uε below
NSK spindle speed	Max. 60,000rpm
Tool diameter	0.8-2.3mm
PCB board cutting thickness	0.2mm-6.0mm
Dust collector power	3HP (option 5HP)
Dust collection cabinet size	640mm×785mm×1760mm (D×W×H)
Machine size	1220mm×1430mm×1520mm (D×W×H)
Weight of main engine + dust collector	900 KG

Device Configuration Features

Double Work Table Structure

YSL-880L features dual slide rail and cylinder double platform operation for simultaneous processing of different product types, significantly reducing plate handling wait times. Configurable as dual platform or large single platform for enhanced operational flexibility.

Lower Vacuum Spindle System

High-speed imported spindle for minimal cutting stress, high precision, and rapid response
Milling cutter detection system for real-time monitoring and prevention of continued operation after cutting
Advanced vision system with uniform ring light source and brightness adjustment for superior Mark point recognition across various PCB finishes including tin plating, copper plating, gold plating, and tin spraying
Visual counterpoint compensation function for enhanced accuracy

Optimized Suction Mode Structure

Funnel seal design with 45-degree bevel angle suction inlet reduces internal dust vortex phenomenon for efficient debris removal.

CNC Special Controller

Independent CNC controller integrates control functions with exceptional stability, high precision, fast response transmission, and strong anti-interference capabilities.

High-Efficiency Dust Collection System

YSL-880L utilizes high-efficiency motor and wind blade design with large suction capacity. Features built-in polyester needle felt dust bag with excellent permeability and oxidation resistance. Noise levels controlled within 80 decibels.
