Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high speed PCB depaneling machine, high efficiency laser maker YSL-U530, PCB depaneling machine with warranty


Berat:	650kg	Voltase:	220V
Catu daya:	220VAC 50Hz	Kekuatan:	1500W
Ukuran:	98016001651mm	Pasokan Udara:	5-7Kgf/cm² atau 0,5-0,7 Mpa
Akurasi pencetakan:	0,02mm	Kecepatan Transfer:	Max 1000mm/s
Kecepatan XY:	1000m/dtk (1500mm/dtk Opsional)	Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Sistem kendali:	PC+ Kontrol gerak+ Motor Servo	Pengaturan Lebar:	CNC otomatis
Sistem Operasi:	Windows 10	Antarmuka:	Bahasa inggris
Arah:	kiri ke kanan atau kanan ke kiri

Berat:	650kg
Voltase:	220V
Catu daya:	220VAC 50Hz
Kekuatan:	1500W
Ukuran:	98016001651mm
Pasokan Udara:	5-7Kgf/cm² atau 0,5-0,7 Mpa
Akurasi pencetakan:	0,02mm
Kecepatan Transfer:	Max 1000mm/s
Kecepatan XY:	1000m/dtk (1500mm/dtk Opsional)
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Sistem kendali:	PC+ Kontrol gerak+ Motor Servo
Pengaturan Lebar:	CNC otomatis
Sistem Operasi:	Windows 10
Antarmuka:	Bahasa inggris
Arah:	kiri ke kanan atau kanan ke kiri

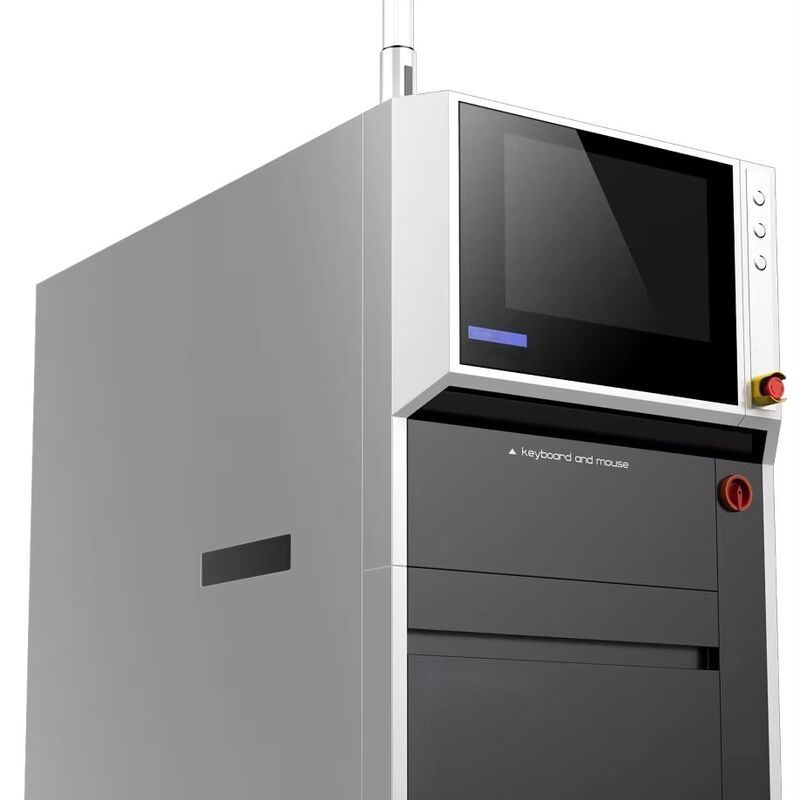

High Speed and High Efficiency Laser Maker YSL-U530

Key Features

Automated control with English interface
Windows 10 operating system compatibility
Dual camera system for fiducials and pattern verification
0.02mm printing accuracy for precision marking
Versatile marking capabilities: characters, numbers, logos, barcodes, QR codes
Shopfloor/MES system connectivity
Supports PCB, FPC, metal and various materials
Intuitive visual interface
Optional inverter function

Technical Specifications

Control System	PC + Motion Control + Servo Motor
Direction	Left to Right or Right to Left
Width Adjustment	CNC Automatic Width Adjustment
Transfer Speed	Maximum 1000mm/S
X-Y Transfer Speed	1000mm/S (1500mm/S Optional)

Integrated Dust Removal System

This integrated dust removal system is specifically designed for our laser maker to effectively remove dust produced during laser operation, ensuring clean and efficient performance.

Dust Removal System Features
