Name: Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 10 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YSVC-3

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB guillotine lead cutter, PCB depaneling cutting machine, PCB lead trimming machine


Berat:	85kg	Kekuatan:	40W
Model:	YSVC-3	Ukuran Paket:	780mmx500mmx620mm
Meminimalkan ketebalan:	0.3-3.5mm	Berat mesin:	185kg
Panjang depaneling maks:	Tak terbatas	Tinggi komponen maks:	50mm
Ketebalan Papan Minimal:	0,3 mm	Ketebalan Papan Maks:	2.0mm
Izin Komponen:	1mm	Metode pengendalian:	digerakkan oleh pneumatik
metode operasi:	Pedal Kaki	Komponen inti:	Motor
Stres depaneling:	Tidak ada tekukan/ketegangan

Berat:	85kg
Kekuatan:	40W
Model:	YSVC-3
Ukuran Paket:	780mmx500mmx620mm
Meminimalkan ketebalan:	0.3-3.5mm
Berat mesin:	185kg
Panjang depaneling maks:	Tak terbatas
Tinggi komponen maks:	50mm
Ketebalan Papan Minimal:	0,3 mm
Ketebalan Papan Maks:	2.0mm
Izin Komponen:	1mm
Metode pengendalian:	digerakkan oleh pneumatik
metode operasi:	Pedal Kaki
Komponen inti:	Motor
Stres depaneling:	Tidak ada tekukan/ketegangan

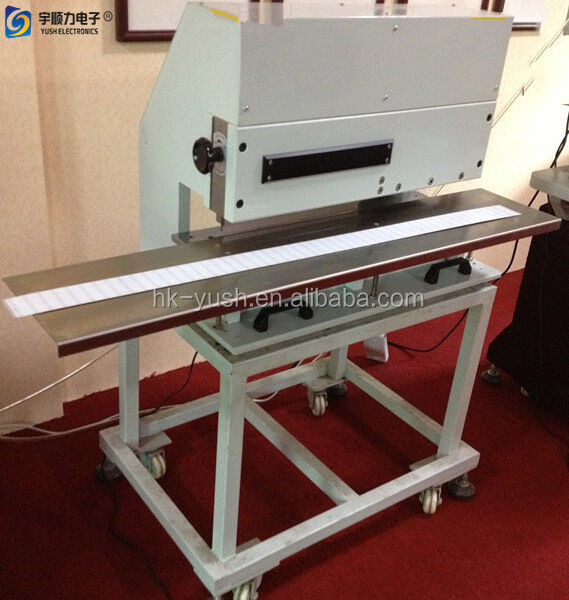

Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine

PCB Guillotine Machine - PCB Lead Cutting Machine

YSVC-3 Model - Professional PCB depaneling solution for efficient and safe board separation

Technical Specifications

Model	YSVC-3
The Longest Cut	Unlimited
Package Size	780mm x 500mm x 620mm
Cut Thickness	0.3-3.5mm
Machine Weight	185Kg

Application Scope

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof design - panels cannot be inserted into knives except on the score line
Handles high components up to 50mm
Avoids bow waves that can occur with round knives
Easy adjustment of distance between knives

Key Advantages

Maximum PCB depaneling length is unlimited
Depaneling PCB without bending and tension stress
Safety use with easy operation
Depaneling process without vibrations

Technical Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for depaneling control
Accommodates components up to 50mm near V-groove
Easy adjustment of PCB insertion gap
