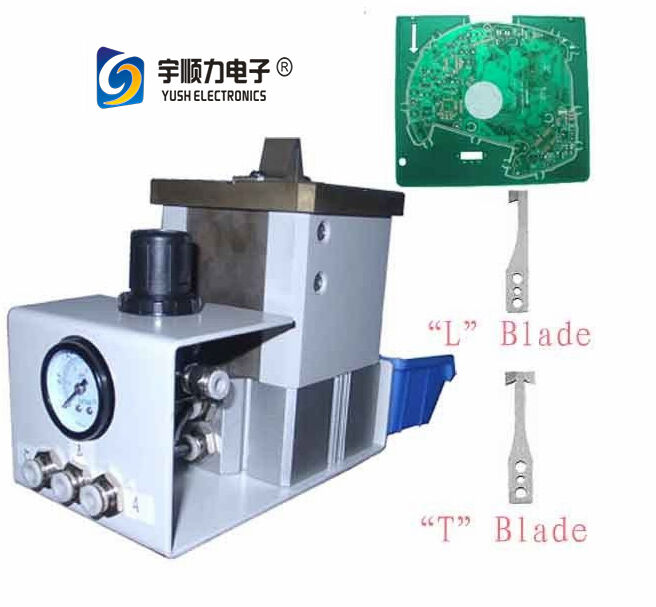

Printed Circuit Board Nibbler Machine

Name: Printed Circuit Board Nibbler Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-LT
Price: 100.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Nomor model: YSV-LT

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $1,200 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling nibbler machine, printed circuit board cutter, PCB nibbler with warranty


Berat:	5,7 Kg	Kekuatan:	10 kw
Voltase:	220v, 110v	Ukuran:	280x105x185mm
Waktu pukulan aksi:	12 kali/menit	Tekanan Udara Kerja:	0,50-0,70 Mpa
Geser Goresan:	2 mm	Komponen inti:	PLC, Gearbox, Motor, Pompa
Tipe bilah:	Tipe T atau L	Kustomisasi Blade:	Ya
Penggantian Blade:	nyaman	Kerusakan PCB:	TIDAK
Jenis operasi:	Kontrol pneumatik	Kompatibilitas PCB:	Berbagai titik koneksi
pengumpulan sampah:	Mesin di dalam

Berat:	5,7 Kg
Kekuatan:	10 kw
Voltase:	220v, 110v
Ukuran:	280x105x185mm
Waktu pukulan aksi:	12 kali/menit
Tekanan Udara Kerja:	0,50-0,70 Mpa
Geser Goresan:	2 mm
Komponen inti:	PLC, Gearbox, Motor, Pompa
Tipe bilah:	Tipe T atau L
Kustomisasi Blade:	Ya
Penggantian Blade:	nyaman
Kerusakan PCB:	TIDAK
Jenis operasi:	Kontrol pneumatik
Kompatibilitas PCB:	Berbagai titik koneksi
pengumpulan sampah:	Mesin di dalam

Printed Circuit Board Nibbler Machine

Printed Circuit Board Nibbler Machine - PCB Singulation Custom Made

Professional pneumatic PCB nibbler machine designed for precise singulation of printed circuit boards with custom blade configurations.

Action Stroke Times	12 times / min
Working Dry Air Pressure	0.50-0.70 Mpa
Slide Stroke	2 mm
Machine Weight	2 kg
Machine Size	280x105x185mm

Technical Specifications

All pneumatic control system for easy operation
Suitable for slitting various PCB connection points

Key Features

Complete pneumatic control for simplified operation
Versatile application for various PCB connection points
Hook blade design with customizable blade shapes
Easy hook blade replacement system
Compatible with "T" type or "L" type blades
Compact size that protects PCB components and substrate

Safe Operation Process

The PCB is positioned with its milled groove over the blade and placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is activated, the off-cut is punched out and waste material is collected inside the machine.

Blade Options

"T"-Blade: Enables punching out off-cuts on both right and left sides of the blade without requiring PCB rotation.

"L"-Blade: Ideal for applications with small distances between off-cuts.
