Motorized Pneumatic PCB Cutting Machine PCB Lead Cutter for Copper Board

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $600-1,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                motorized PCB depaneling machine, pneumatic PCB lead cutter, copper board cutting machine


Berat:	25KG	Kekuatan:	60W
Voltase:	110/220V	Model:	YSV-2M
Kecepatan:	0~400 mm/dtk	Ukuran:	420 x 280 x 400 mm
Panjang Maks:	Tak terbatas	Kisaran Ketebalan:	1.0-3.5mm
Jumlah pisau:	2 bilah melingkar	Modus pisau:	Digerakkan oleh motor
Opsi meja kerja:	Panjang yang dapat disesuaikan	Komponen inti:	PLC, Gearbox, Motor, Pompa
Mode Pengoperasian:	Manual, Semi-otomatis, Otomatis penuh	Penggilingan pisau:	Didukung
Bentuk pemotong khusus:	Tersedia

Berat:	25KG
Kekuatan:	60W
Voltase:	110/220V
Model:	YSV-2M
Kecepatan:	0~400 mm/dtk
Ukuran:	420 x 280 x 400 mm
Panjang Maks:	Tak terbatas
Kisaran Ketebalan:	1.0-3.5mm
Jumlah pisau:	2 bilah melingkar
Modus pisau:	Digerakkan oleh motor
Opsi meja kerja:	Panjang yang dapat disesuaikan
Komponen inti:	PLC, Gearbox, Motor, Pompa
Mode Pengoperasian:	Manual, Semi-otomatis, Otomatis penuh
Penggilingan pisau:	Didukung
Bentuk pemotong khusus:	Tersedia

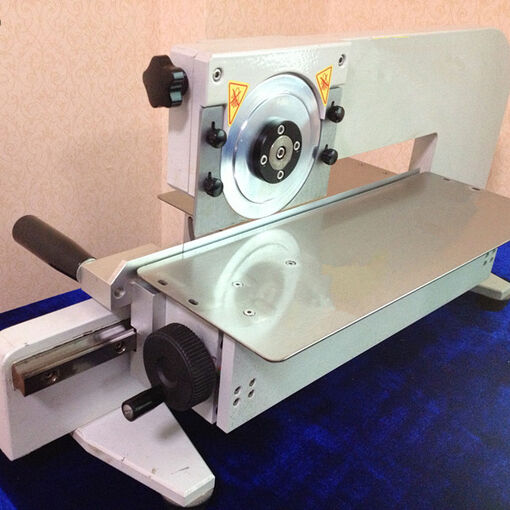

Motorized Pneumatic PCB Cutting Machine PCB Lead Cutter for Copper Board

High-performance V-CUT PCB depaneling machine with web guide system, featuring up and down dual circular blades for efficient printed circuit board separation.

v-cut pcb depaneling machine web guide

Model: YSV-2M

Technical Specifications

Maximum Length	Unlimited
Material Thickness	1.0-3.5mm
Blade Configuration	Up and down 2 circular blades
Operation Mode	Down circular blade with motor-driven
Cutting Speed	0-400mm/s
Voltage & Power	110/220V 60W
Machine Dimensions	420 × 280 × 400mm
Weight	25Kg
Workbench	Optional (customizable length according to your board requirements)

Key Features & Benefits

Minimizes shearing stress to prevent micro-cracks in solder joints
Precision guiding device for accurate V-CUT alignment on PCBs
Ball bearing slideways for easy adjustment of PCB edge guides
Ball bearing slideways for simple tabletop height setting
Three operating modes: Manual (handwheel), Semi-automatic (start button), or Fully-automatic (continuous running)
Re-grindable cutters for extended tool life
Customizable cutter shapes available for specialized applications

Additional Advantages

This PCB depaneling machine offers exceptional value with its economical pricing, safety-focused design, and user-friendly operation. The re-grindable blades provide long-term cost efficiency while maintaining cutting precision.
