Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                2 way sliding PCB router, desktop PCB milling machine, PCB depaneling machine with warranty


Berat:	300kg	Kekuatan:	3kW
Voltase:	220V/110V	Dimensi:	P623L737T587mm
Ketebalan PCB:	0,5-5mm	Kemampuan Pemotongan:	Linier, Melingkar, Kurva U, Busur, Kurva L
Tekanan udara:	0.4mpa	Jenis perlengkapan:	Perlengkapan universal
Kecepatan Pemotongan:	0-100mm/dtk	Akurasi pengulangan:	±0,01mm
Wilayah kerja:	X:0-260mm, Y:0-260mm, Z:0-80mm	Diameter Bit Router:	0.8-3.0mm
Kecepatan spindel:	60000rpm	Pendinginan spindel:	Pendinginan Udara
Tingkat Kebisingan:	≤ 78 dB

Berat:	300kg
Kekuatan:	3kW
Voltase:	220V/110V
Dimensi:	P623L737T587mm
Ketebalan PCB:	0,5-5mm
Kemampuan Pemotongan:	Linier, Melingkar, Kurva U, Busur, Kurva L
Tekanan udara:	0.4mpa
Jenis perlengkapan:	Perlengkapan universal
Kecepatan Pemotongan:	0-100mm/dtk
Akurasi pengulangan:	±0,01mm
Wilayah kerja:	X:0-260mm, Y:0-260mm, Z:0-80mm
Diameter Bit Router:	0.8-3.0mm
Kecepatan spindel:	60000rpm
Pendinginan spindel:	Pendinginan Udara
Tingkat Kebisingan:	≤ 78 dB

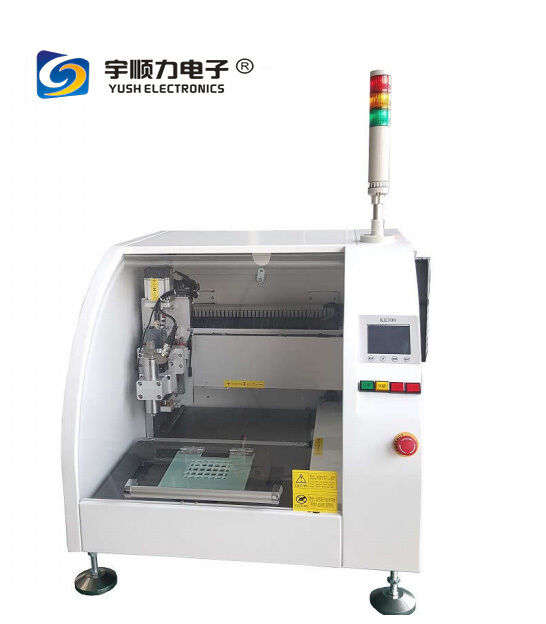

In Line 2 Way Sliding Exchanger PCB Router /Desktop PCB Router Milling Machine

In Line 2 Way Sliding Exchanger PCB Router / Desktop PCB Router Milling Machine

Key Features

Advanced dust collection system using free fall theory for optimal dust removal
Specialized fixtures ensure secure positioning and prevent cutting accuracy errors
Automatic system correction maintains high-precision cutting requirements

Built-in static eliminator removes electricity and dust during operation
Safety doors reduce noise and dust while enhancing operational safety
Equipped with maintenance-friendly dust collection box

Applications

Ideal for splitting stamp hole PCB boards and irregular joint PCB boards

Technical Specifications

Function Items	Hardware Demand
Model	YS-L5300
Dimension	L623W737H587mm
Power	220V/50HZ
Machine power	3.6KW
Weight	About 300KG
Cleaner Dimension	Inside / L650W500H550mm
Cleaner Wattage	2.2KW/220V
Table Dimension	260mm*260mm
Cutting Speed	0-100mm/s
X,Y,Z axis Driving Speed	X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy	±0.01mm
Working Area	X:0-260mm,Y:0-260mm,Z:0-80mm
PCB Thickness	0.5-5mm
Router Bit Diameter	0.8-3.0mm
Cutting Precision	±0.01mm
Cutting Ability	Linear, Circular, U-curve, Arc, L-curve
Cutter Change	Manual, tools needed
Cutter Attrition System	The number of milling cutters (0-5 section)
Cutter Break Detection	none
Cutter Life Control	controlled by Program
Table Number	1pc
Spindle Speed	60000rpm
Spindle Cooling System	Air cooling mode
Cleaner Mode	collect dust downside
Working Power	220V ,50HZ
Air press	0.4Mpa
Safety Device	Safety door and door lock sensor
Mode	offline, load and unload PCBA by hand
Auto failure test and repair mode	Self-diagnosis,display failure information in real time, query IO state visually, easy for troubleshooting
Computer & Operation system	IPC, Windows 7
Program Backup	USB
Software access control	Password protection,the operator enter corresponding interface according to authority to protect important parameters.
Programming	Visual interface, the cutting point capacity for a single program should be over 400, dynamic simulation of cutting schedule
Auto correction of the mark point	Yes
Fixture	universal fixture
Voice control	≤78 dB(measured in 1M's distance )
Maintenance Period	1 years
Technology Support	Offer service of operation, programming, hardware caring and maintenance training; free upgrade of application.
