Pneumatic Pcb Cutting Machine

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YuSH

Sertifikasi: CE

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $10,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Pneumatic PCB depaneling machine, PCB cutting machine with warranty, Pneumatic PCB cutter


Voltase:	220V/110V	Kekuatan:	10 w
Berat:	180 kg	Dimensi:	720mm(P)300mm(L)440mm(T)
Panjang Papan Maksimum:	300mm / 400mm	Kisaran Ketebalan:	0,50 ~ 3,5mm
Tekanan Udara Kerja:	0,4--0,6MPa	Memotong Stres:	di bawah 180uE
Pukulan pemotongan:	di bawah 1mm	Laju pemotongan:	1 pemisahan per detik
Jarak bebas tepi alur V:	0,3 mm	Batas ketinggian komponen:	60mm
Garansi pisau:	200.000 potongan	Persyaratan Kompresor Udara:	4-5KG
Komponen inti:	PLC, Motor

Voltase:	220V/110V
Kekuatan:	10 w
Berat:	180 kg
Dimensi:	720mm(P)300mm(L)440mm(T)
Panjang Papan Maksimum:	300mm / 400mm
Kisaran Ketebalan:	0,50 ~ 3,5mm
Tekanan Udara Kerja:	0,4--0,6MPa
Memotong Stres:	di bawah 180uE
Pukulan pemotongan:	di bawah 1mm
Laju pemotongan:	1 pemisahan per detik
Jarak bebas tepi alur V:	0,3 mm
Batas ketinggian komponen:	60mm
Garansi pisau:	200.000 potongan
Persyaratan Kompresor Udara:	4-5KG
Komponen inti:	PLC, Motor

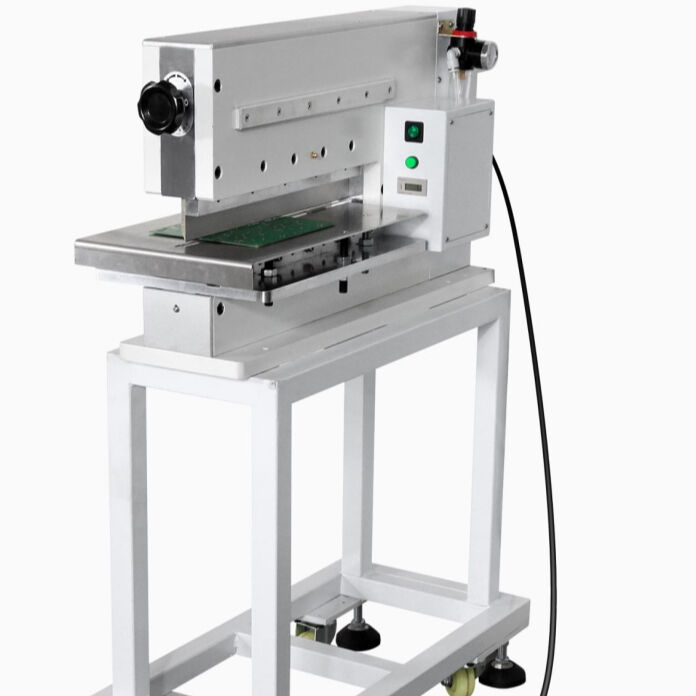

Pneumatic Pcb Cutting Machine

Pneumatic PCB Cutting Machine - YSVC-2

Using advanced gas-electric lightweight design with built-in SERISOR technology, this machine completes PCB cutting in a single operation without shear stress. Specifically engineered for precision SMD or sheet cutting, it eliminates bow waves and micro cracks common with circular knife cutting methods.

Key Advantages

Double straight knife cutting system - ideal for separating precise SMD sheets and aluminum boards
Guillotine-type cutting suitable for various PCB thicknesses with stroke below 2mm for operator safety
Reduces internal stress during cutting to below 180μE, preventing splits and protecting precision components
Capable of cutting boards with 0.3mm width between V-groove edge and components, up to 60mm height
Cutting tools can be repeatedly sharpened after wear for extended service life

Technical Specifications

Maximum Board Length	300mm / 400mm
Package Size	720mm(L) × 300mm(W) × 440mm(H)
Thickness Range	0.50 - 3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4 - 0.6Mpa
Weight	189 kg
Application Scope	All V-CUT SMD PCB Boards

Operational Characteristics

High-speed segmentation at 1 separation per second controlled by pedal pneumatic switch
Passive start cutting knife group ensures safe operation with minimal cutting stress
Non-roller cutting system eliminates dust, motor drive, and carbon pollution
Non-friction cutting method prevents residual metal contamination
Blade warranty: 200,000 cycles with no electrical components to replace
Proprietary cutting tool design eliminates import dependencies
Operates with standard 4-5KG air compressor for flexible placement
