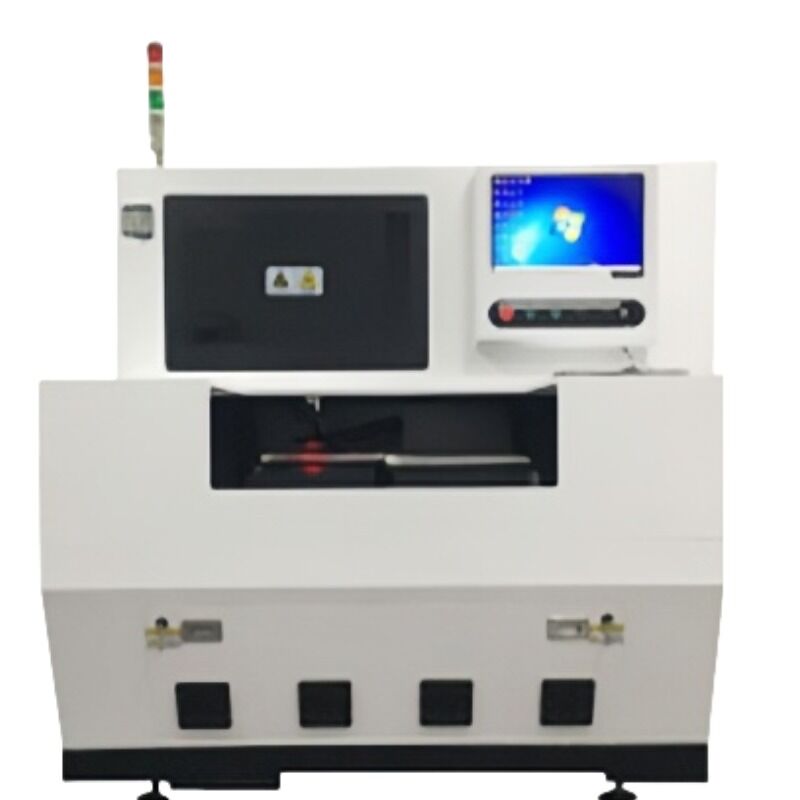

Name: PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-6A
Price: 75.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YSV-6A

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $50,000-100,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB laser cutting machine with warranty, UV laser cutting machine for SMT stencils, PCB depaneling machine with UV laser


Berat:	1600kg	Merek Laser:	Optowave Amerika Serikat
Jenis Laser:	Laser UV keadaan padat	Panjang Gelombang Laser:	335nm
kekuatan laser:	10/12/15W	Posisi Presisi:	± 2μm
Presisi Pengulangan:	± 1 μm	Wilayah kerja:	600*600mm
Kecepatan pemindaian:	2500mm/dtk (maks)	Berat mesin:	1500kg
Ukuran mesin:	135011501550mm	Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Perangkat lunak kontrol:	Berbasis Windows	Sistem Fokus:	Otomatis waktu nyata
Konfigurasi Meja Kerja:	Dua meja kerja

Berat:	1600kg
Merek Laser:	Optowave Amerika Serikat
Jenis Laser:	Laser UV keadaan padat
Panjang Gelombang Laser:	335nm
kekuatan laser:	10/12/15W
Posisi Presisi:	± 2μm
Presisi Pengulangan:	± 1 μm
Wilayah kerja:	600*600mm
Kecepatan pemindaian:	2500mm/dtk (maks)
Berat mesin:	1500kg
Ukuran mesin:	135011501550mm
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Perangkat lunak kontrol:	Berbasis Windows
Sistem Fokus:	Otomatis waktu nyata
Konfigurasi Meja Kerja:	Dua meja kerja

PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter

PCB Laser Cutting Machine | UV Laser Cutting Machine | SMT Stencil Cutter

Key Features

High Accuracy: Low-drift galvanometer and fast ironless linear motor system platform enable rapid cutting with micrometer-level precision
Easy to Learn: Independent Windows-based control software with user-friendly Chinese interface, powerful and diverse functionality
Dual Worktables: Combination of two worktables allows simultaneous in/out operation, ideal for large-scale product cutting
Extended Platform: Platform extends outward for easy material handling, eliminating frequent door opening
Automatic Real-time Focusing: Ensures consistent cutting at optimal focus point
High Cutting Quality: Superior cutting accuracy with minimal blackening and carbonization
Compact Design: Small model size for easy transportation and installation

Technical Specifications

Model	YSV-6A
Laser Brand	USA Optowave
Laser Rate	Solid-State UV Laser
Laser Wavelength	335nm
Laser Power	10/12/15W
Positioning Precision	±2μm
Repetition Precision	±1μm
Working Area	600×600mm
Laser Scanning Speed	2500mm/s (max)
Machine Weight	1500kgs
Machine Size	1350×1150×1550mm

Packaging & Shipping

Upon completion, the machine body is protected and wrapped with plastic film to prevent damage during export transportation.

We measure customer-customized machine dimensions and create precisely fitting custom wooden boxes.

Export packaging utilizes sturdy wooden boxes specifically designed for heavy machinery, ensuring optimal protection during transit.
