Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency PCB depaneling machine, multi blade PCB depaneling machine, practical PCB assembly depaneling machine


Berat:	350KG	Ukuran:	L1300W400H1000mm
Kekuatan:	110V/220V AC 60HZ/50HZ	Ketebalan PCB:	0.8-3.0mm
Kecepatan Pemotongan:	Dapat disesuaikan	Penyesuaian pemotong atas:	800rpm
Lebar PCB tunggal:	15-20mm	Bahan Pisau:	Skh51 Baja Kecepatan Tinggi
Jenis papan:	Panel LED, papan serat, papan aluminium (>400mm), papan khusus	Komponen inti:	PLC, Motor
Proses Pemotongan:	Tak terbatas	Banyak pemotong:	Ya
Ban berjalan:	Termasuk	Memotong Stres:	Dikurangi
Tampilan Layar:	Tampilan celah

Berat:	350KG
Ukuran:	L1300W400H1000mm
Kekuatan:	110V/220V AC 60HZ/50HZ
Ketebalan PCB:	0.8-3.0mm
Kecepatan Pemotongan:	Dapat disesuaikan
Penyesuaian pemotong atas:	800rpm
Lebar PCB tunggal:	15-20mm
Bahan Pisau:	Skh51 Baja Kecepatan Tinggi
Jenis papan:	Panel LED, papan serat, papan aluminium (>400mm), papan khusus
Komponen inti:	PLC, Motor
Proses Pemotongan:	Tak terbatas
Banyak pemotong:	Ya
Ban berjalan:	Termasuk
Memotong Stres:	Dikurangi
Tampilan Layar:	Tampilan celah

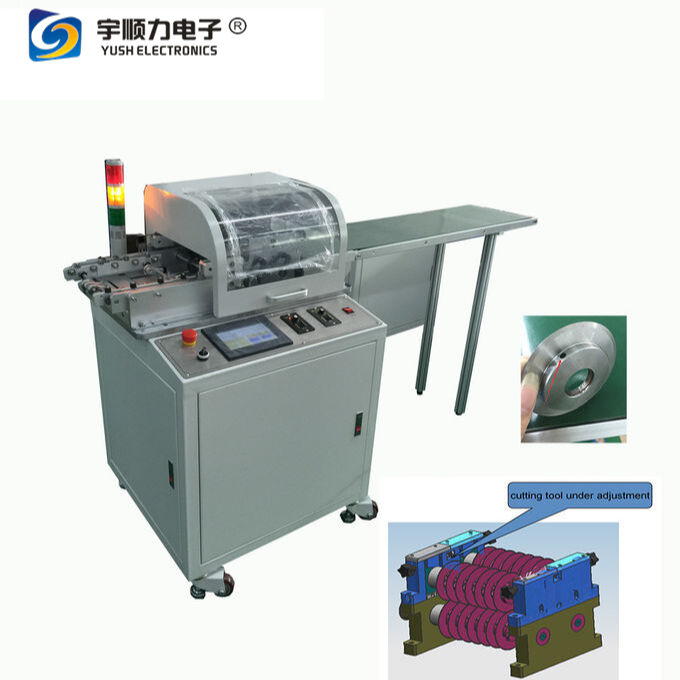

Super Practical High Efficiency Multi Blades PCB Depaneling Machine for PCB Assembly

High Efficiency PCB Depaneling Machine

Super Practical Multi-Blades PCB Depaneling Machine designed for efficient PCB assembly operations with advanced features for mass production.

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and maintenance
Computer screen control with production counting and direct gap display for precise operation
Compatible with all V-cut PCB boards for universal application
Reduces cutting stress to prevent solder joint cracking and board damage
Multiple cutter system enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for fine-tuning cutting parameters
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades provide exceptional wear resistance and long service life
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt system for automatic board ejection and seamless production line integration
Multi-blade operation ensures simple, efficient performance ideal for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (≥400mm), and special boards
