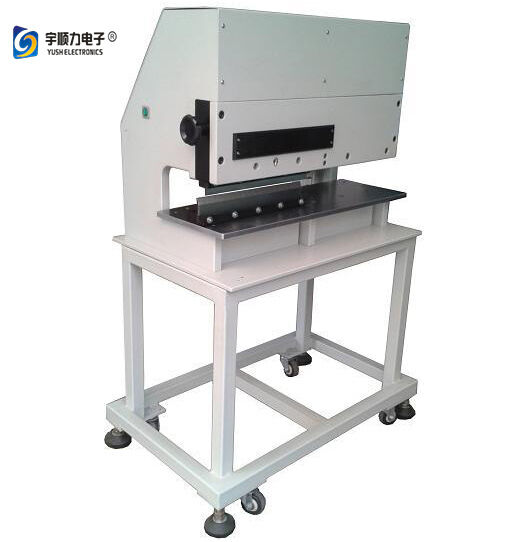

Name: Docking with the Next Machine PCB De-paneling Machine - YSVC-3
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 4 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YSVC-3

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $4,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with warranty, Next Machine PCB depaneler, YSVC-3 depaneling machine


Berat:	185kg	Meminimalkan ketebalan:	0.3-3.5mm
Minimalkan Terpanjang:	Tak terbatas	Ukuran:	780mmx500mmx620mm
Panjang depaneling maks:	Tak terbatas	Tinggi Komponen:	Hingga 50mm
Ketebalan PCB:	0.3mm sampai 2.0mm	Metode pengendalian:	digerakkan oleh pneumatik
metode operasi:	Pedal Kaki	Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Stres depaneling:	tidak ada tekukan atau ketegangan	Tingkat getaran:	tanpa getaran
Kesenjangan yang dapat disesuaikan:	Mudah disesuaikan	Kompatibilitas Bahan:	PCB aluminium, strip LED
Fitur Keamanan:	operator sangat mudah

Berat:	185kg
Meminimalkan ketebalan:	0.3-3.5mm
Minimalkan Terpanjang:	Tak terbatas
Ukuran:	780mmx500mmx620mm
Panjang depaneling maks:	Tak terbatas
Tinggi Komponen:	Hingga 50mm
Ketebalan PCB:	0.3mm sampai 2.0mm
Metode pengendalian:	digerakkan oleh pneumatik
metode operasi:	Pedal Kaki
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Stres depaneling:	tidak ada tekukan atau ketegangan
Tingkat getaran:	tanpa getaran
Kesenjangan yang dapat disesuaikan:	Mudah disesuaikan
Kompatibilitas Bahan:	PCB aluminium, strip LED
Fitur Keamanan:	operator sangat mudah

Docking with the Next Machine PCB De-paneling Machine - YSVC-3

Technical Specifications

Model	YSVC-3
Maximum Cutting Length	Unlimited
Dimensions	780mm × 500mm × 620mm
Cutting Thickness Range	0.3-3.5mm
Machine Weight	185Kg

Key Operational Features

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof! Panels cannot be inserted into the knives except on the score line
Handles high components up to 50mm
Bow waves that can occur with round knives are avoided
Easy adjusting of distance between knives

Product Description

Maximum PCB depaneling length is unlimited with depaneling performed without bending and tension stress. The machine ensures safety and easy operation with a vibration-free depaneling process.

Advanced Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for convenient PCB depaneling
Accommodates components up to 50mm near the V-groove
Easy adjustment of PCB insertion gap

Competitive Advantages

Payment: T/T
Delivery: Within 7 days after receipt of payment
Origin: Suzhou City, Jiangsu Province, China
Minimum Order: 1 set
Packaging: Seaworthy plywood case, safe, no fumigation required
Inspection: Internal quality control
Samples: Not Available
Specialization: Especially designed for depaneling aluminum PCB and LED strips
