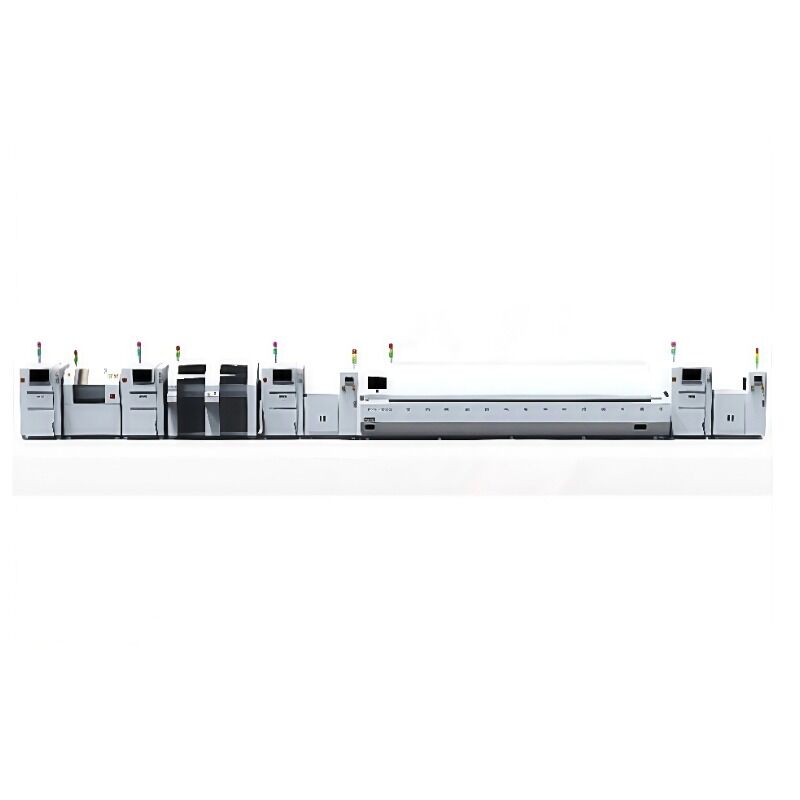

High Speed Semi-auto SMT PCB Assembly Production Line

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 kilogram

Harga: $90,000 / kilogram

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB assembly line, semi-auto PCB production line, high speed PCB depaneling machine


Berat:	2000kg	Kecepatan Penempatan:	156.000 CPH
ukuran PCB:	300x350mm, 600x350mm, 1200x350mm	Ukuran Platform:	300x350mm, 700x400mm, 1350x400mm
Ukuran stensil:	370470.550650.1500*650 mm	Ketebalan PCB:	0,2 - 6mm
Waktu Siklus:	< 10 Detik, < 12 Detik.	Konsumsi Daya:	200W, 8kw, 10kw
Catu daya:	1-PH, 220VAC 50/60HZ	Tekanan udara:	4,5-6kg/cm
Kecepatan Alat Pembersih:	0-1500mm/detik	Dimensi:	850x750x1650mm, 1050x750x1650mm, 1660x750x1650mm, 5000x1250x1490mm, 5800x1250x1490mm
Jumlah zona pemanasan:	Atas8/Bawah8, Atas10/Bawah10	Panjang zona pemanasan:	3121mm, 3891mm, 3030mm, 3730mm
Tinggi Konveyor:	900+/-20mm

Berat:	2000kg
Kecepatan Penempatan:	156.000 CPH
ukuran PCB:	300x350mm, 600x350mm, 1200x350mm
Ukuran Platform:	300x350mm, 700x400mm, 1350x400mm
Ukuran stensil:	370470.550650.1500*650 mm
Ketebalan PCB:	0,2 - 6mm
Waktu Siklus:	< 10 Detik, < 12 Detik.
Konsumsi Daya:	200W, 8kw, 10kw
Catu daya:	1-PH, 220VAC 50/60HZ
Tekanan udara:	4,5-6kg/cm
Kecepatan Alat Pembersih:	0-1500mm/detik
Dimensi:	850x750x1650mm, 1050x750x1650mm, 1660x750x1650mm, 5000x1250x1490mm, 5800x1250x1490mm
Jumlah zona pemanasan:	Atas8/Bawah8, Atas10/Bawah10
Panjang zona pemanasan:	3121mm, 3891mm, 3030mm, 3730mm
Tinggi Konveyor:	900+/-20mm

High Speed Semi-auto SMT PCB Assembly Production Line

This high-speed semi-automatic SMT production line is designed for efficient PCB assembly with placement speeds reaching approximately 156,000 CPH. Ideal for mobile phone and LED TV manufacturing applications.

SMT Stencil Printer (Semi-auto)

Specification	Y3 Model	Y6 Model	Y12 Model
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform Size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size (mm)	370470, 550650	370470, 550650	370470, 550650, 1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Power Supply	1-PH, 220VAC 50/60HZ	1-PH, 220VAC 50/60HZ	1-PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-1500mm/sec	0-1500mm/sec	0-1500mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg
Squeegee Length	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm

Option: Special sizes can be customized according to specific requirements.

Reflow Oven

Specification	L8 Model	L10 Model
Dimension (LWH) mm	5000x1250x1490	5800x1250x1490
Weight	Approx. 1600KG	Approx. 1800KG
Number of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length of Heating Zones	3121mm	3891mm
Rail Width Adjustment	M (option: A)	M (option: A)
Exhaust Volume	10M³/min x 2 Exhausts	10M³/min x 2 Exhausts
Control System	PLC + Computer	PLC + Computer
Temperature Control Method	PID + SSR	PID + SSR

Specification	622 Model	733 Model
Dimension (LWH) mm	5040x145x1450	5800x1450x1450
Machine Weight	Approx. 2200KG	Approx. 2400KG
Number of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length of Heating Zones	3030mm	3730mm
Number of Cooling Zones	2	3
Control System	PLC + Computer	PLC + Computer
Transmission Agent	Chain + Mesh	Chain + Mesh
Max. Width of PCB	460mm	460mm
Power for Warm Up	45kw	55kw
Power Consumption	8kw	10kw
Conveyor Height	900+/-20mm	900+/-20mm
