High Quality and High Efficiency PCB Router Off- Line Depanleing Machine YSVC-650

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $30,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine YSVC-650, off-line PCB router machine, high efficiency depaneling machine


Berat:	800kg	Voltase:	220v, 110v
Area perutean:	300x350mm	Kecepatan Pemotongan:	0-100mm/detik
Tipe spindel:	Spindel presisi Jepang NAKANISHI	Kedekatan Jalur Pemotongan:	0,5 mm ke komponen
Kompensasi Penyelarasan:	Kamera CCD	Penyesuaian Kedalaman:	otomatis 5 tahap
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor	Jenis mesin:	Mesin Router Depaneling
Jenis operasi:	Offline	Koreksi Penglihatan:	CCD berkecepatan tinggi
Kualitas Tepi Papan:	Lurus, Presisi Tinggi	pengoperasian perangkat lunak:	Titik-dan-klik berbasis Windows
Pembacaan Tanda Fidusia:	Kamera CCD

Berat:	800kg
Voltase:	220v, 110v
Area perutean:	300x350mm
Kecepatan Pemotongan:	0-100mm/detik
Tipe spindel:	Spindel presisi Jepang NAKANISHI
Kedekatan Jalur Pemotongan:	0,5 mm ke komponen
Kompensasi Penyelarasan:	Kamera CCD
Penyesuaian Kedalaman:	otomatis 5 tahap
Komponen inti:	PLC, Mesin, Bantalan, Gearbox, Motor
Jenis mesin:	Mesin Router Depaneling
Jenis operasi:	Offline
Koreksi Penglihatan:	CCD berkecepatan tinggi
Kualitas Tepi Papan:	Lurus, Presisi Tinggi
pengoperasian perangkat lunak:	Titik-dan-klik berbasis Windows
Pembacaan Tanda Fidusia:	Kamera CCD

High Quality and High Efficiency PCB Router Off- Line Depanleing Machine YSVC-650

High Quality and High Efficiency PCB Router Off-Line Depaneling Machine YSVC-650

Product Overview

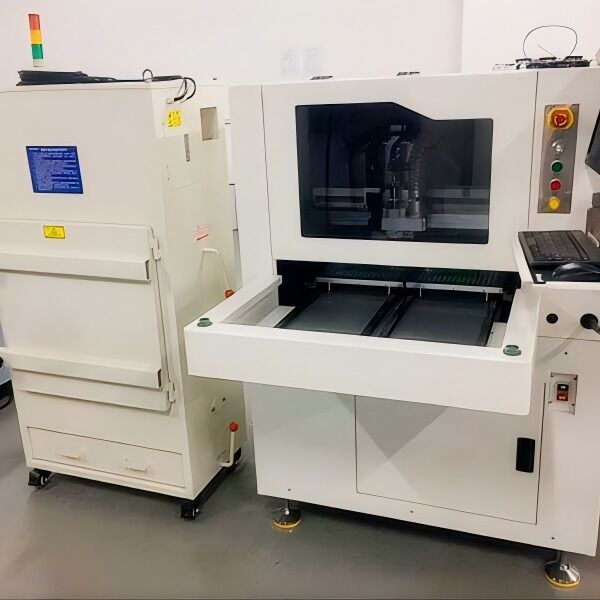

The YSVC-650 series is a visual alignment automatic PCB router machine equipped with high-speed CCD vision correction technology. Designed for precision and high-capacity PCB board routing operations, this machine is ideal for depaneling mobile phones, GPS devices, PDAs, MODULE components, and other small PCBs. Featuring NAKANISHI Japanese precision spindles (with optional Germany KAVO spindles available), it delivers stress-free cutting with smooth board edges and exceptional precision.

Key Features

Low-Stress Depanelization Solution: High-speed router bits precisely cut densely populated PCBs without stressing the boards, with cutting paths programmable as close as 0.5mm to components.
Advanced Image-Processing Software: Point-and-click Windows-based operation simplifies programming of cutting paths using CCD camera-captured PCB images, reducing setup time and complexity.
Automatic Alignment Compensation: CCD camera reads fiducial marks on PCBs and compensates for variance in relative position of cutting paths.
Extended Router Bit Life: Automatic 5-stage depth adjustment extends bit lifespan and reduces replacement time and costs.

Applications

Ideal for depaneling operations in mobile phone manufacturing, GPS devices, PDAs, MODULE components, and other small PCB applications requiring high precision and efficiency.
