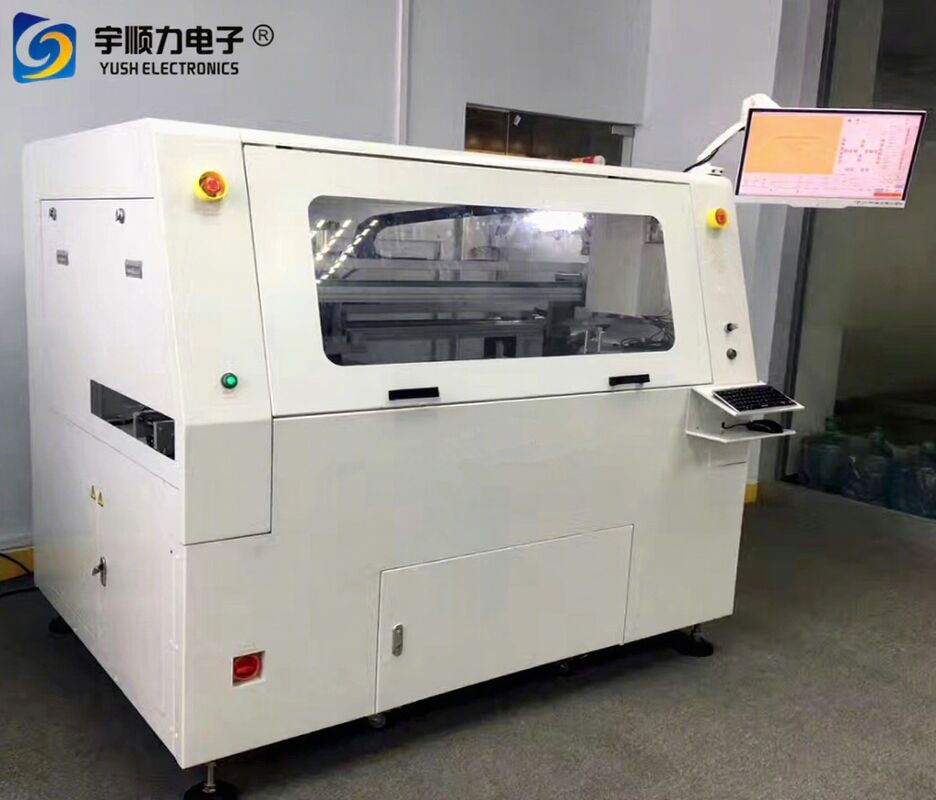

On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting

Rincian Produk

Tempat asal: Guangdong, Tiongkok

Nama merek: YUSH

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $18,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with real-time positioning, dust-free PCB cutting machine, online circuit board cutting machine


Berat:	3500 kg	Kekuatan:	10 kw
Voltase:	220V/110V	Kecepatan Pemotongan:	0-100mm/dtk
Keakuratan Ulang:	±0,01mm	Metode pengendalian:	IPC dan PC Industri
Modus berkendara:	Motor Servo Serat Optik AC	Akurasi pemotongan:	±0,05mm
Kecepatan spindel:	100.000 rpm	Tegangan host:	220V 1ψ 50/60Hz
Tekanan udara:	≥4,5kg/cm²	Konsumsi Daya:	3KVA
Kolektor Debu:	2hp	Tegangan Kolektor Debu:	380V 3ψ
Ukuran pengumpul debu:	P650×L400×T1350mm

Berat:	3500 kg
Kekuatan:	10 kw
Voltase:	220V/110V
Kecepatan Pemotongan:	0-100mm/dtk
Keakuratan Ulang:	±0,01mm
Metode pengendalian:	IPC dan PC Industri
Modus berkendara:	Motor Servo Serat Optik AC
Akurasi pemotongan:	±0,05mm
Kecepatan spindel:	100.000 rpm
Tegangan host:	220V 1ψ 50/60Hz
Tekanan udara:	≥4,5kg/cm²
Konsumsi Daya:	3KVA
Kolektor Debu:	2hp
Tegangan Kolektor Debu:	380V 3ψ
Ukuran pengumpul debu:	P650×L400×T1350mm

On-line Circuit Board Cutting Machine with Real-Time Positioning & Dust-Free Cutting

Advanced PCB depaneling solution featuring automated loading, cutting, and unloading with precision vision alignment and dust collection system.

Technical Specifications

X, Y Cutting Speed	0 - 100mm/s
Machine Repeat Accuracy	± 0.01mm
Control Methods	Industrial IPC and PC
Drive Mode	AC Fiber Optic Servo Motor
Cutting Accuracy	± 0.05mm
Spindle Speed	Max 100,000 RPM
Host Voltage	220V 1ψ 50/60HZ
Air Pressure Supply	Above 4.5kg/cm²
Power Consumption	3KVA
Dust Collection	Upper Dust Collection 2HP
Dust Collector Voltage	380V 3ψ
Dust Collector Dimensions	L650 × W400 × H1350mm

Available Models

Workbench	Model	Specifications	Work Size	Machine Dimensions (W×D×H)
Double Tables	YASTM-4C-IN-AS	Standard Type	300 × 300mm	1680 × 1298 × 1700mm
Double Tables	YASTM-4C-IN-AW	Widened	500 × 450mm	1902 × 1373 × 1700mm

Key Features

In-line automatic PCB separator for automated loading, cutting, and unloading
Automatic width adjustment and PCB board reception with finished/waste identification
High-speed CCD with automatic vision alignment system for precision cutting
High-speed spindle cutting with minimal stress for any PCB form
Dual table motion for simultaneous PCB cutting and placement operations

Operational Advantages

Double slide placement device reduces cutting waiting times and increases production capacity
Eliminates artificial flap issues causing tin cracking and part damage
Avoids mechanical stress from blunt or fold operations
Suitable for finished plate arc and line cutting applications
Ideal for small piece final cutting including mobile phone base plates, PDA, and PC interface cards

System Configuration

Provides fine-tuning revision through diagrammatic machine interface with comprehensive cutting parameter settings.

Manufacturer Information

YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China's world manufacturing city. The company specializes in professional PCB separator and depaneling electronic equipment machinery.

With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has become one of China's largest PCB separator production bases.

Since 2004, the company has focused on product quality, safety, and innovation, developing various PCB separator types including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router solutions.
