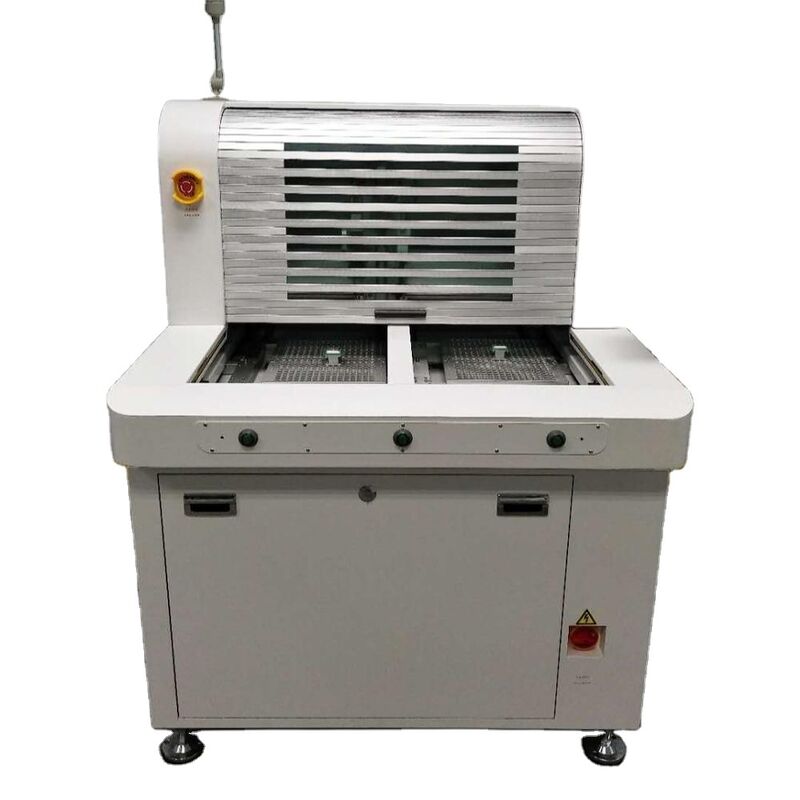

Name: CE PCB Separator Machine ,CNC Pcb Cutting Router
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 50 USD
Availability: InStock

Rincian Produk

Tempat asal: Jiangsu, Tiongkok

Nama merek: YUSH

Nomor model: YSVC-650

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: $50,000 / set

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CE certified PCB separator machine, CNC PCB cutting router, PCB depaneling machine with warranty


Berat:	800kg	Ketebalan papan:	0,8 hingga 3,0 mm
lebar strip tunggal:	10 hingga 20mm	Ukuran Tubuh:	1300x400x1000mm
Panjang pemotongan:	100- tidak terbatas	Wilayah kerja:	350X350mm
Ketebalan PCB:	0.3 ~ 3.5mm	Pengumpulan Debu:	Vakum Atas atau Bawah
Kotak pengumpul debu:	Vakum atas 2HP-3HP/Vakum bawah 3HP-5HP	Catu daya:	AC220/380V50/60HZ tiga fase
Udara Terkompresi:	0,4-0,6 Mpa	Kecepatan Pemotongan:	0-100mm/dtk
Akurasi Pengulangan Mesin:	± 0,01mm	Akurasi pemotongan:	± 0,05mm
Kecepatan spindel:	Maks 60000rpm

Berat:	800kg
Ketebalan papan:	0,8 hingga 3,0 mm
lebar strip tunggal:	10 hingga 20mm
Ukuran Tubuh:	1300x400x1000mm
Panjang pemotongan:	100- tidak terbatas
Wilayah kerja:	350X350mm
Ketebalan PCB:	0.3 ~ 3.5mm
Pengumpulan Debu:	Vakum Atas atau Bawah
Kotak pengumpul debu:	Vakum atas 2HP-3HP/Vakum bawah 3HP-5HP
Catu daya:	AC220/380V50/60HZ tiga fase
Udara Terkompresi:	0,4-0,6 Mpa
Kecepatan Pemotongan:	0-100mm/dtk
Akurasi Pengulangan Mesin:	± 0,01mm
Akurasi pemotongan:	± 0,05mm
Kecepatan spindel:	Maks 60000rpm

CE PCB Separator Machine ,CNC Pcb Cutting Router

CE PCB Separator Machine, CNC PCB Cutting Router

CNC Four-axis offline PCB Depaneling Router machine YSVC-650

Technical Specifications

Working Area	350 × 350 mm (Customizable large size)
PCB Thickness	0.3~3.5mm
Waste Collection Methods	Dust collection box
Dust Collection Method	Upper or Lower Vacuum
Dust Collection Box Parameters	Upper vacuum 2HP-3HP / Lower vacuum 3HP-5HP
Sensor Switch Brand	Panasonic Japan
Servo Motor Brand	Panasonic Japan
Electrostatic Ion Wind Gun Brand	Taiwan
Guideway Brand	Taiwan PMI
Screw Brand	Taiwan TBI grinding grade
CCD Camera Brand	Germany BASLER
Spindle Brand	Japan NAKANISHI
Computer Host Brand	ASUS brand host
Machine Weight	840KG
Security Grating	Taiwan

Electrical Specifications

Power Supply	AC220/380V 50/60HZ three-phase
Compressed Air	0.4-0.6 MPA (with filter)

Operation Control

Operating System	Chinese/English Optional
Software Control Method	PC + Industrial Control System Control
Programming Methods	Computer programming, AOI scanning and editing programs faster and more accurate
Warning Light	Three-color sound and light alarm (normal work, waiting for test, fault alarm)
Fault Alarms	Air pressure instability, blocking, collision
Safe Production	Produce order mode production, four-level password protection (automatic, manual, sensor protection, etc.)

Advanced Features

Statistics Function: Both left and right board with statistics function
Information Management: Support MES information system with seamless connectivity
Network Communication: Open Ethernet Interface, supports TCP/IP protocol
BAR CODE Function: Open BAR CODE function port
Axis Drive: Servo motor + screw, guide rail for X, Y, Z axes
Worktable Operation: Servo motor + screw, guide rail for input/output
Cutting Capability: Left and right worktables can separate different products simultaneously
Height Adjustment: Different heights and products can be processed simultaneously
MARK Point Identification: Recognizes different shapes, freely settable before division
LED Aperture: Software-adjustable brightness
Camera Control: Software-controlled vertical movement
PCB Positioning: Universal fixture, positioning PIN, tool fixture options
Milling Cutter Range: 0.8-3.0mm diameter
Cutter Management: Automatic height adjustment for extended tool life
MES Integration: Open MES docking port function
BAR CODE Scanning: Open BAR CODE scan port function
Cutting Speed: 0-100mm/S adjustable per second
Worktable Configuration: Two worktables
Cutting Functions: Straight, curved, L-shaped, U-shaped cuts
Troubleshooting: Software failure detection with I/O port capabilities and detailed alerts

Service & Support

Machine warranty: 15 months. After-sales service points located in Suzhou, Dongguan, United States, Brazil, Britain, France, and Turkey. Welcome to be our foreign agent.

Basic Specifications

X, Y cutting speed: 0 ~100mm/s
Machine Repeat Accuracy: ± 0.01mm
X, Y1, Y2, Z Control Methods: Industrial IPC and PC
X, Y1, Y2, Z Drive Mode: AC Fiber Optic Servo Motor
Machine Operation and Data Storage: PC System
Cutting accuracy: ± 0.05mm
Spindle speed: Max 60000rpm
Host voltage: 220V 1ψ 50 / 60HZ
Air pressure supply: above 4.5kg/cm²
Power Consumption: 1.8KVA
Dust Collection: Lower Dust Collection (Standard) or Upper Dust Collection
Dust collector voltage: 220V (380V) 3ψ
Upper dust collector size: L650×W400×H1350mm
Dust collector size: L665×W635×H1650mm

Model Specifications

Workbench	Model	Specifications	Work Size	Machine Dimension W×D×H	Net Weight
Double Tables	YSVC-650-A	Standard Type	350×350mm	1382×1056×1500mm	840KG
Double Tables	YSVC-650-B	Widened	500×500mm	1682×1356×1500mm	940KG
