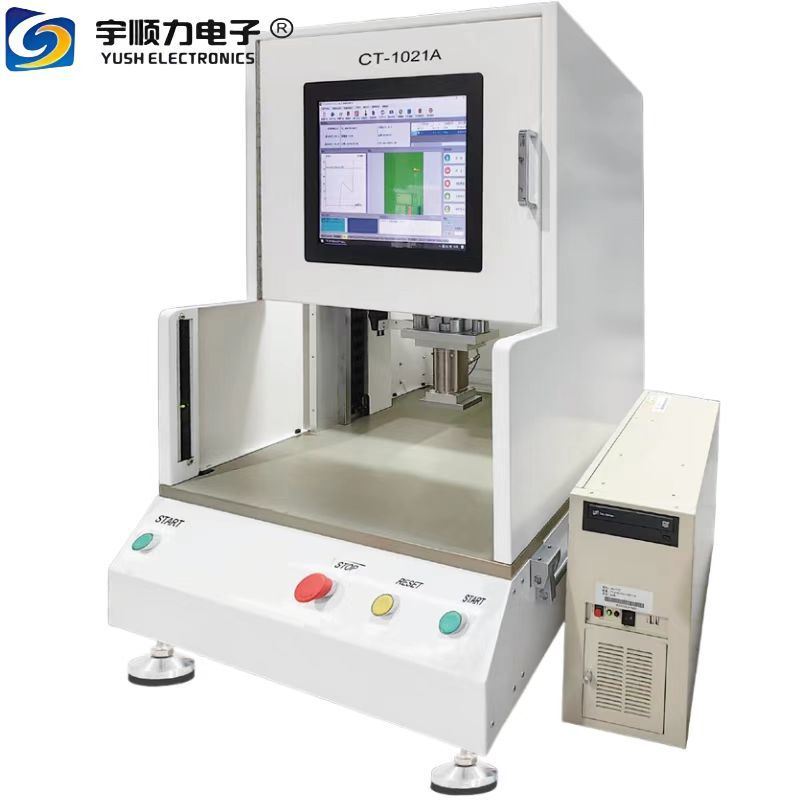

Name: High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: CT-1021A
Price: 5800 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina, Guangdong

Nama merek: YUSH

Sertifikasi: CE

Nomor model: CT-1021A

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: USD5800

Kemasan rincian: Kasing kayu

Waktu pengiriman: 20 hari kerja

Syarat-syarat pembayaran: L/c, d/a, d/p, t/t

Menyediakan kemampuan: 1000

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                semi-automatic press-fit machine, desktop press-fit machine, high efficiency SMT press-fit


Max. Kekuatan pers:	0,05t	Metode kontrol:	Industri PC+Servo Motor
Stroke pers efektif:	100 mm	Tekan ukuran blok:	100l x 50w mm
Perangkat pengaman:	Tirai cahaya

Max. Kekuatan pers:	0,05t
Metode kontrol:	Industri PC+Servo Motor
Stroke pers efektif:	100 mm
Tekan ukuran blok:	100l x 50w mm
Perangkat pengaman:	Tirai cahaya

High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine

Product Characteristics

H-shaped structure: Consists of two vertical frames and horizontal beam with high compressive strength and deformation resistance, ensuring equipment stability
Servo motor drive enables real-time monitoring of pressure, displacement, and speed
Precise control of ram displacement and speed achieves high-precision press-fitting, effectively avoiding overpressure and underpressure
Real-time pressure monitoring with closed-loop control throughout the pressing process
Controlled by industrial computer with comprehensive SPC management, log management, user permission management, and program management
Equipped with mold and component databases for data management, with unlimited program capacity
Features pressure curve sampling control, curve slope control, and pressure/position/speed control for high-quality dynamic controllable pressing
Automatic saving, envelope, and analysis software package for pressure curve
Component alignment via laser-assisted positioning
Safety measures include dual-button start and light curtain to ensure operational safety
Supports both Chinese and English interfaces, with MES data transmission capability
Offers online and offline programming functionality
